Giới thiệu Cặp đầu nối chữ Y Mc4 cho tấm pin năng lượng mặt trời
^^^^^^^^^^^^^^^^^^^^^^^^^^
Product Description
100% brand new and high quality
Material: Plastic
Color: Black

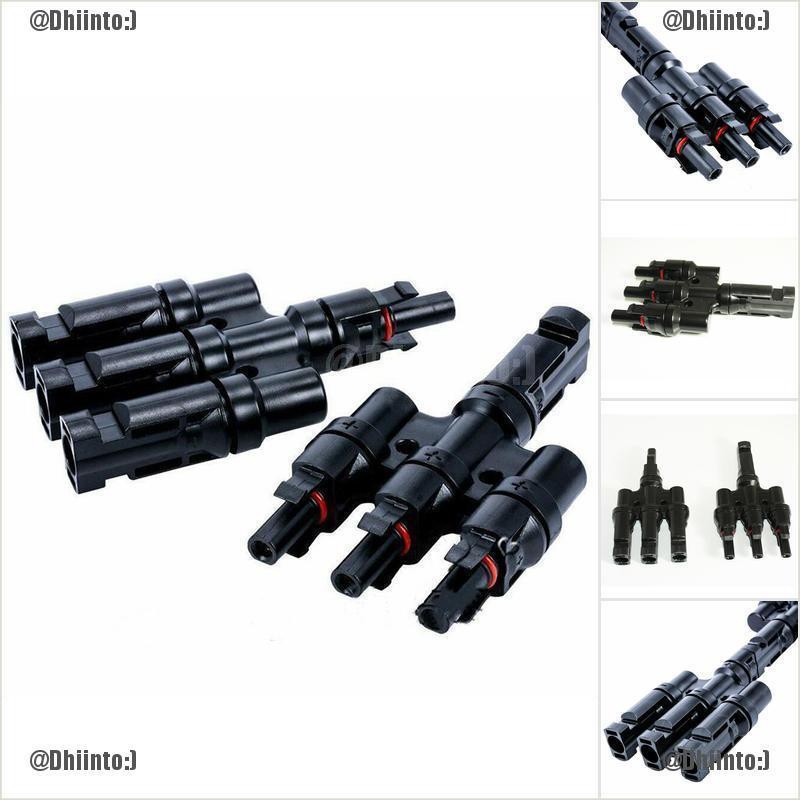

1 Pair Y Branch MC4 Connectors Features:
Brand new and high quality.
1 Pair MC4 adapter connectors for solar cells panels.
With excellent aging resistance and UV endurance.
It can be used in harsh environment.
It does not need extra instruments for the removal of plugs.
Removal will not cause any harm to plugs.
Load capability with big current and high voltage.
Good ability of resistance and machine shocking.
Lower contact resistance.
Created seal ,design of water proof and dust proof.
Eligible plastic material has marvelous performances of high low temperature and fireproof.
Rated current : 20A(4mm2),30A (6mm2).
Retaed voltage: 1000V DC.
Flame class : UL94-V0.
Temperature range: -40~+105°C.
Insulation material : PPO.
Contact material: Copper,Silver Plated.
Cable length: 31cm /12.2"

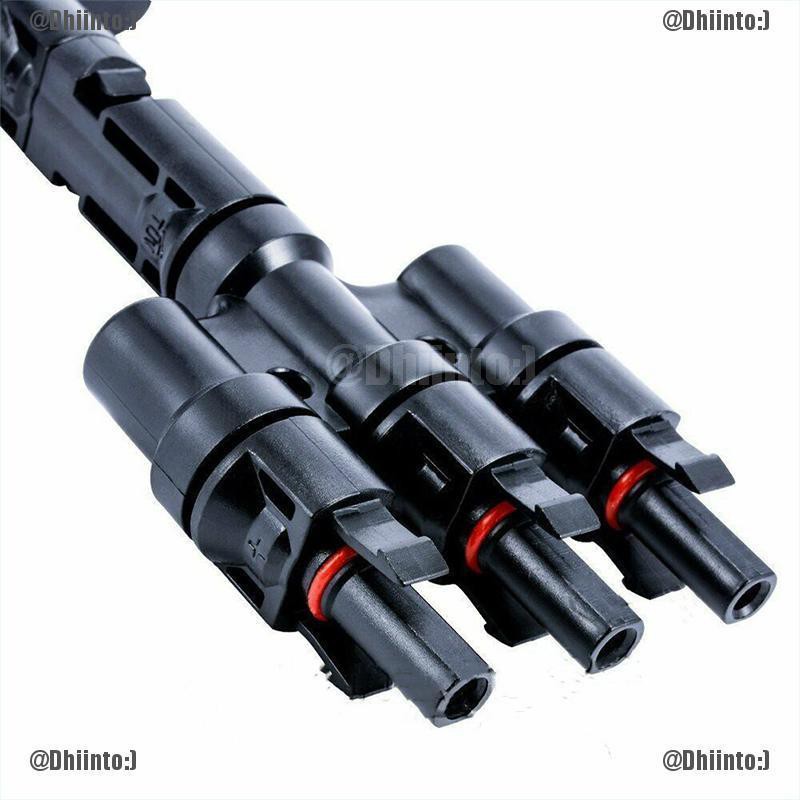

1 Pair T Branch MC4 Connectors Features:
Brand new and high quality.
1 Pair MC4 adapter connectors for solar cells panels.
With excellent aging resistance and UV endurance.
It can be used in harsh environment.
It does not need extra instruments for the removal of plugs.
Removal will not cause any harm to plugs.
Load capability with big current and high voltage.
Good ability of resistance and machine shocking.
Lower contact resistance.
Created seal ,design of water proof and dust proof.
Eligible plastic material has marvelous performances of high low temperature and fireproof.
Rated current : 20A(4mm2),30A (6mm2).
Retaed voltage: 1000V DC.
Flame class : UL94-V0.
Temperature range: -40~+90°C.
Insulation material : PPO.
Contact material: Copper,Silver Plated.
Size:10.8cm x 4cm x 2cm/4.25"X1.57"X0.79"
Quantity:1 set
Package includes:
1 Pair Y Branch MC4 Connectors
OR
1 Pair 3 to 1 T Branch MC4 Connectors
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
