Cáp Chia Cổng 1 Sang 5 4-pin Molex Tx4 Pwm Cpu

Giới thiệu Cáp Chia Cổng 1 Sang 5 4-pin Molex Tx4 Pwm Cpu

[Kweed]Description:

Features:

100% brand new and high quality.

It is designed for enthusiasts with need for controlling numerous system fans.

Capable of expanding one motherboard PWM fan header to support up to five fans.

Support PWM function, speed control, satisfy your control needs.

Compatible with 3-pin / 4-pin fans (Due to 3 pins no PWM controller, 3-pin fans would run in full speed.)

Support cable management.

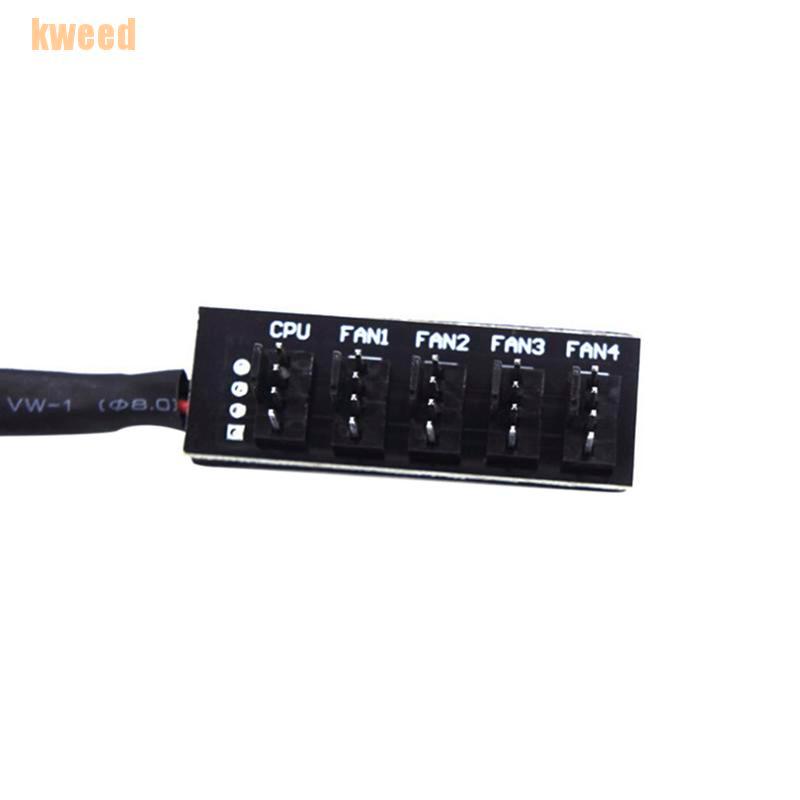

Comes with self-stick for easy installation and options to hide the PCB itself.

Since only one RPM signal can be read by one motherboard connector, only CPU Fan channel of the PWM splitter carries an RPM signal;

Thus the motherboard will only read the RPM signal of the PWM device that is connected to channel 1 of the splitter.



Kindly Remind:

- Only the fan on CPU Fan channel is used for monitoring.

- All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc.

- PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default.

- Please carefully consult your motherboard documentation in this respect.

- This is only a fan hub, NOT fan speed controller.

- Only 4-pin PWM fans speed can be adjusted by fan controller software.

- 3-pin fan would run in full speed, can not be adjusted when connect.



Specifications:

Item Type: 5-Port Fan Hub

Material: Nylon + Plastic + Metal

Color: Black (As the picture shown)

Length: Approx. 39.5cm/15.55in

Connector A: 1 - TX4 4-pin Female

Connector B: 1 - TX4 4-pin Male for CPU fan (including Detect tach pin)

4 - TX4 4-pin Male for case fan

Voltage: DC 12V

Quantity: 1PC (other accessories demo in the picture is not included)

Note:

-Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.

-Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

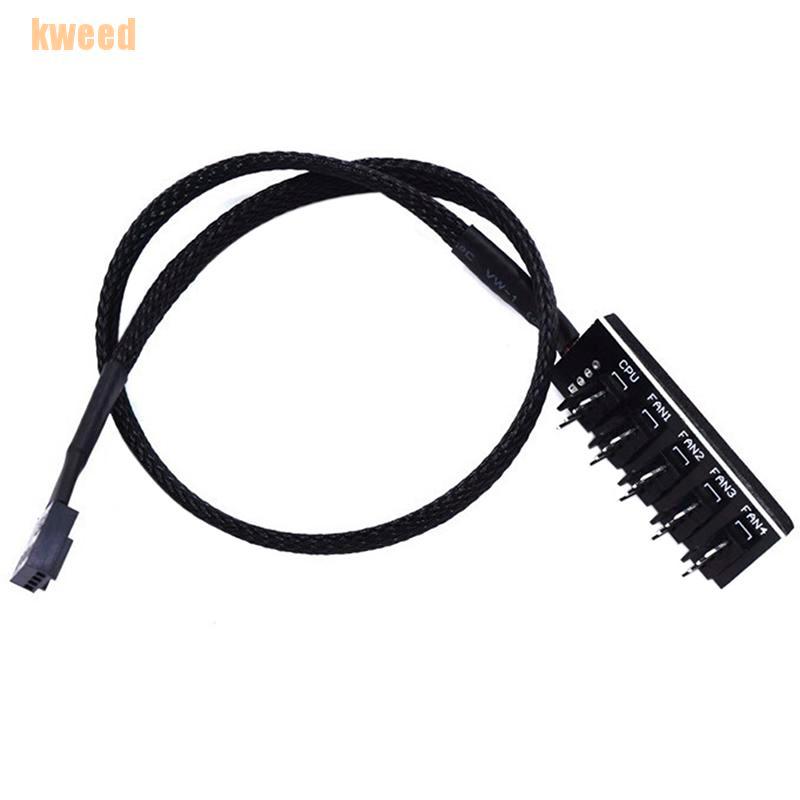

1 X 1 To 5 4-Pin Molex TX4 PWM CPU Cooling Fan Splitter Adapter Cable (No retail package)
