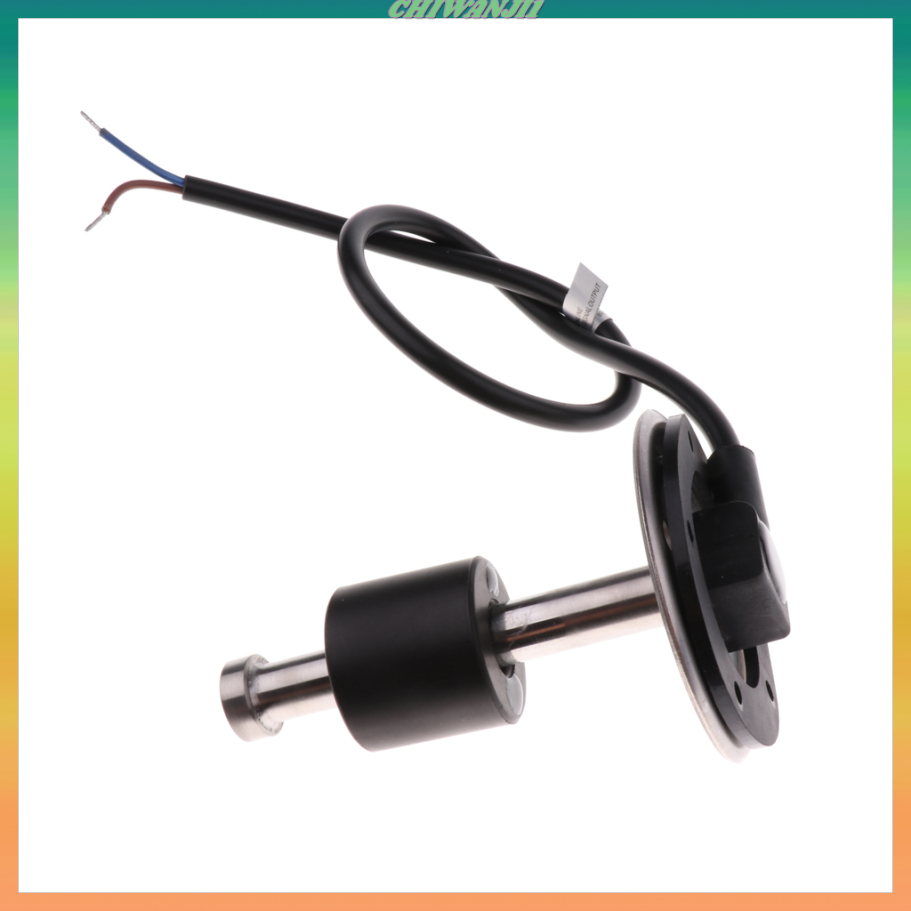

Cảm Biến Mức Dầu Chất Lượng Cao A11 S11 100mm Cho Xe Hơi

Giới thiệu Cảm Biến Mức Dầu Chất Lượng Cao A11 S11 100mm Cho Xe Hơi

Description:
Easy to install
Corrosion resistance, wear resistance
Non-contact measurement, safe and reliable
Good seismic performance, impact resistance
The service life is long
Specification:
Main body is made of stainless steel SUS316 or SUS304
Assembly: the SAE standard 5 holes
This product is equipped with five M5 thread and 2 mm thick NBR gasket, if used on gasoline tank, suggested that equipped with 2 mm thick FPM gasket
Protection grade: IP67
This product USES magnetic field control principle of dry reed pipe contacts on and off, has the characteristics of long service life and aseismatic explosion-proof
Rated power: 125 mw
Alarm switch current rating: 500 ma
Wire: PVC material (can choose PA corrugated tube protector)
Connector: can choose according to D elphi, tyco, etc
Output signals: 0 ~ 190 Ω (standard),
Precision range: 10 ~ 40 mm

Working temperature: - 40 ° ~ + 85 °
Use scope:
All kinds of vehicle fuel tank oil level test
Industry in a variety of liquid detection
Package Includes:
1 Piece Oil Level Sensor

Hình ảnh sản phẩm
