Bộ ốc vít T8 8mm 500mm kèm đai ốc cho máy in 3D Makerbot i2

Giới thiệu Bộ ốc vít T8 8mm 500mm kèm đai ốc cho máy in 3D Makerbot i2

Screw mainly used in stepper motor, Machine Tool, and other equipment.
Screw without processing, direct connected to bearing.
Suitable for Industrial automation equipment, stepper motor rails; such as 3D printers; engraving machine; XYZ module; slider; lifts etc.
color: gold+silver
Lead screw:
Material: stainless steel
Diameter: 8mm
spacing: 2mm
Total Length: 500mm
Screw nut:
Material: brass
Diameter: 8mm
Mounted ball bearing:
Material: zinc alloy
Bore diameter: 5mm
Hole diameter: 8mm
Total length: 55mm
Height: 29mm
Shaft coupling:
Material: aluminium
Shaft: 6.35 x 8mm
Length: 24mm
Diameter: 18mm
How to install:
1. Pls put screw nut into the Lead screw
2.Then the 2 Mounted ball bearing separately install at both ends of the Lead screw
3. According to the size of you need to adjust the distance between the nut and Mounted ball bearing
4. Put shaft coupling into the Lead screw beside the Mounted ball bearing
Package Included:
1x Lead screw
1x Screw nut
2x Mounted ball bearing
1x Shaft coupling
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

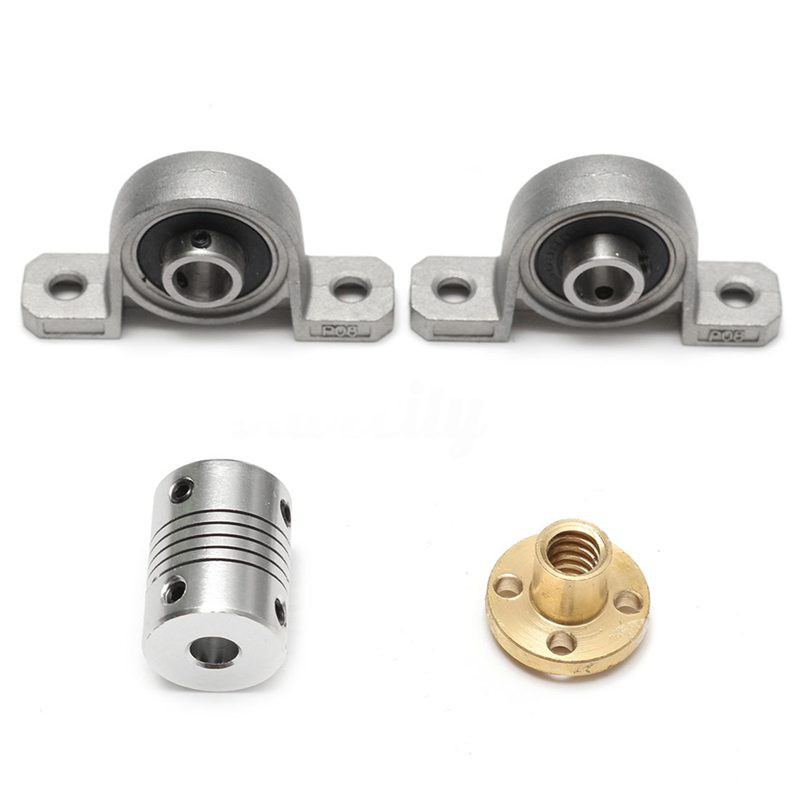

Hình ảnh sản phẩm
