Bo mạch tăng điện áp 10-28V thủ công cho đèn LED đa giao diện kích thước 15-24 inch

Giới thiệu Bo mạch tăng điện áp 10-28V thủ công cho đèn LED đa giao diện kích thước 15-24 inch

__________________♤#Bamaxis ♤___________________
Welcome to my store ,We insist on the lowest price to sell the best quality items

✔Ready to sent✔Good quality✔Best price
★★Surprises for you★★
❤Follow shop/ “Like” Items: Priority Shipping & Free Gift
❤PS: If you want a free gift, please send me the screenshot that you follow my shop and leave a message on your order.

Features:
1. Universal interface 2P 6P 10P 12P full interface universal.
2. Comes with multiple cables to meet your needs.
3. LED booster board, recommended professional modification, suitable for DIY players.
4. The interface is complete, fully meet your needs.
5. Can be used for lamp with boost, power supply.

Specification:
Color: blue

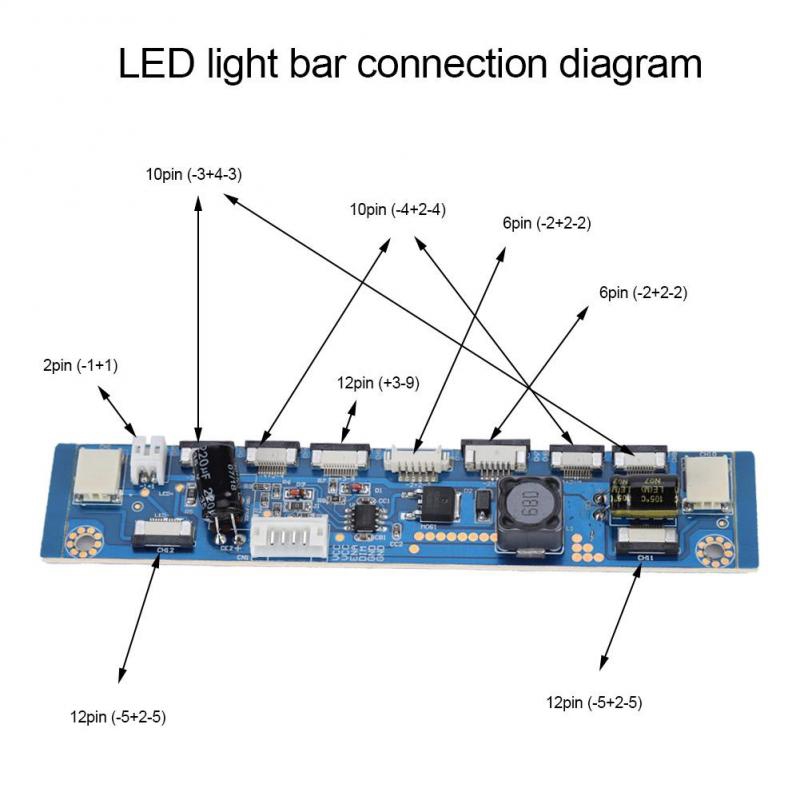

Interface definition: Output 12 interfaces
-3 + 4-3
-4 + 2-4
+3 - 9
-1 + 1
-2 + 2-2 electronic wire
-2 + 2-2FFC
-4 + 2-4
-3 + 4-3
-5 + 2-5 * 2
Small mouth * 2
:10P 3- 4+ 3-
:3- 4+ 3- 6
, .LED, LED, LED, LED, LED, LED.
:3,9V, LED.
12pin: -5+2-5
10pin: -3+4-3
10pin: -4+2-4
12pin: +3-9
6:-2+2-26
1.06Pin: -2+2-2
2: BH2.0
:BH 3.5
Size: 12.3 * 3.1cm / 4.8 * 1.2in
Weight: approx. 28g

Package List:

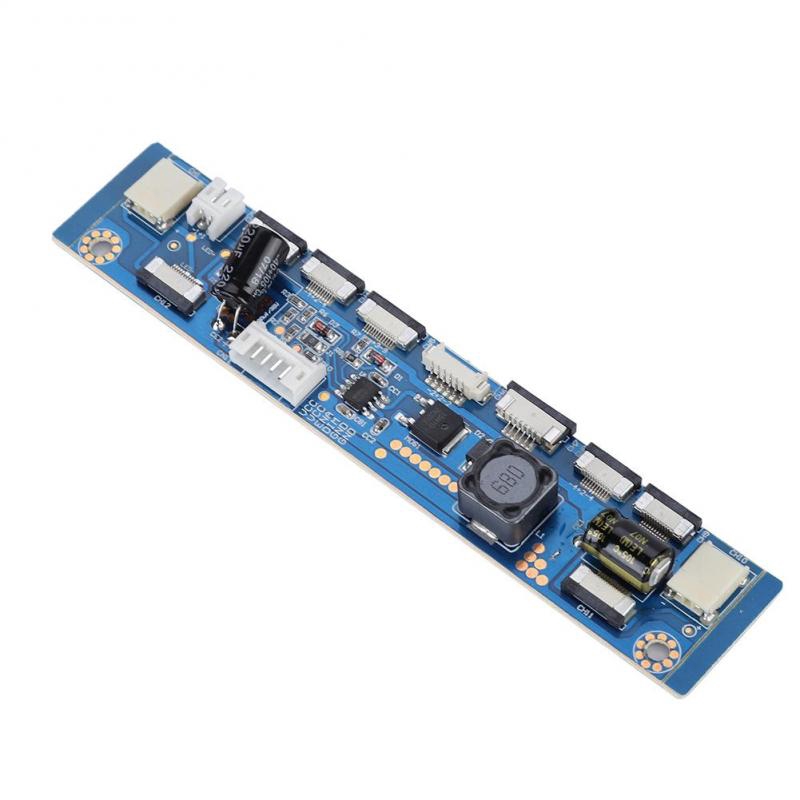

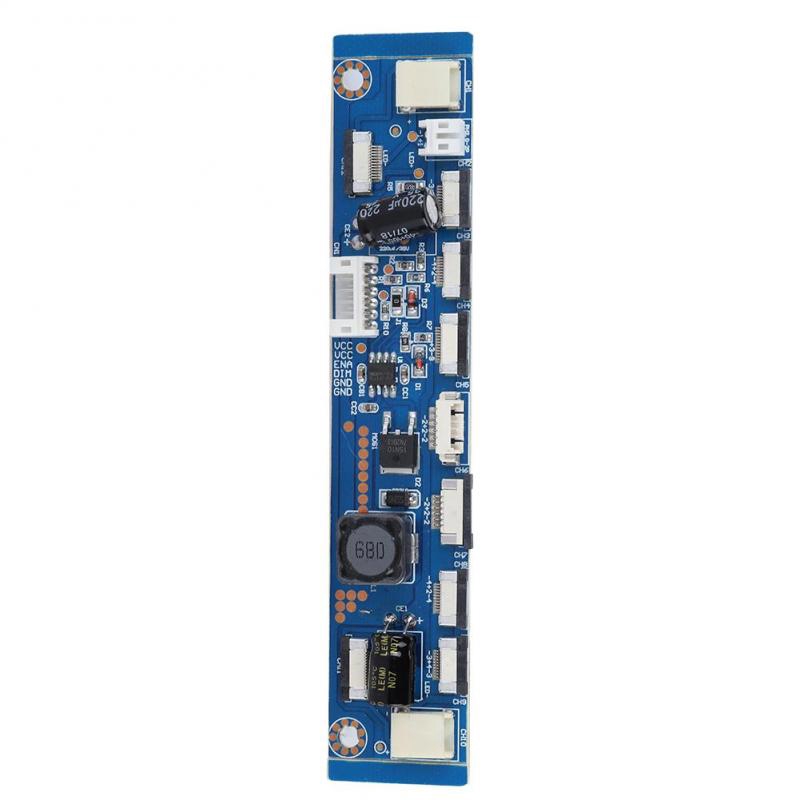

1 * Booster Board

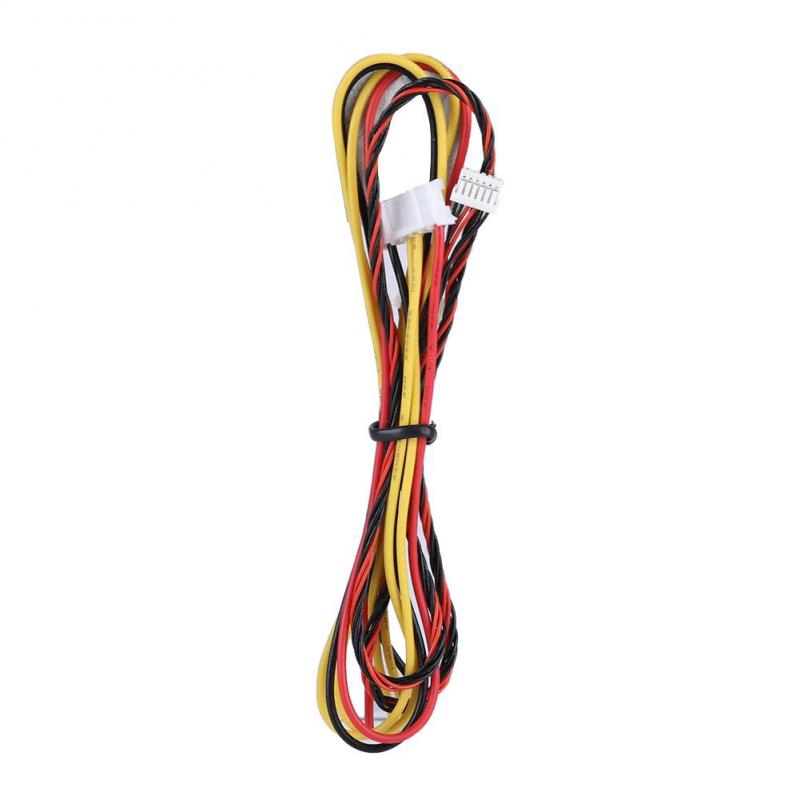

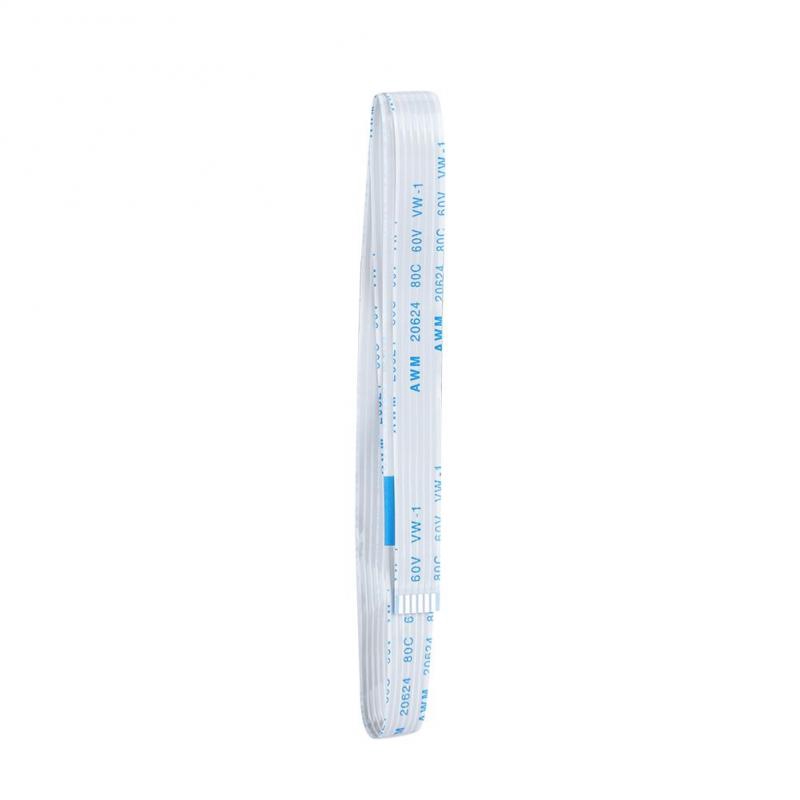

6 * Flat Cable
LED high voltage board conversion instructions

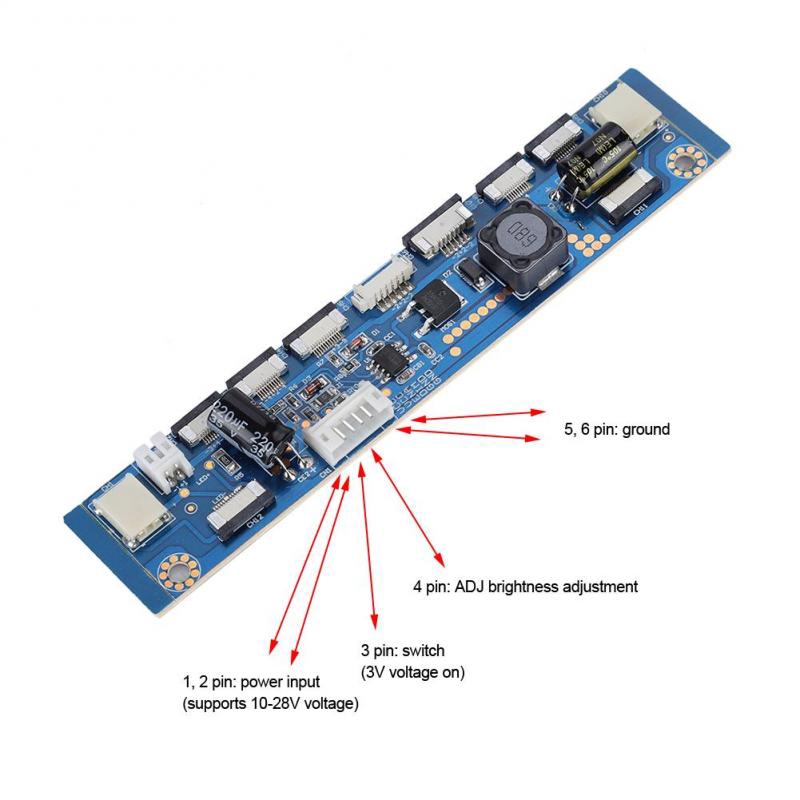

1: Connect the power, ground, and switching signals required by the booster board to the general-purpose LED booster board.
VCC power switch signal, brightness control, ground
Tip: The connection method is the same as the LCD high voltage board
2: Use a multimeter to measure the number of LED strips is the number of lines, the number of lines is a few negative numbers, the number of lines is several lines
The lines are only at the more positive and negative points. The work of science and technology should not see the definition of the original elevator board.
Product Name: Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage board
Not all interfaces are soldered, we have pre-installed one or more details as described above
Warm reminder: LED connection must pay attention to the interface definition only the positive and negative points, the positive input power supply must not be reversed or wrong, the connection is not conceited, especially remind, please forgive me.
Technical support is not available due to conditions. You should know how to use it
