Bo Mạch Điều Khiển Màn Hình Lcd Ds.D3663Lue.A81.2.Pa V56 V59 + 1 Đèn + Ds 3663

Giới thiệu Bo Mạch Điều Khiển Màn Hình Lcd Ds.D3663Lue.A81.2.Pa V56 V59 + 1 Đèn + Ds 3663

This el is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themsees of the opportunity of using it as a monitor.
Controller 3663 has on board analog-to-digital R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video. Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.
Step of USB upgrade : 1.Put the firmware of "3463GU_A.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board
2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing ,it means upgrade has finished.(Note that write programs do not power outages, crashing won't be able to use)
How to into Factory setting? Press"Input" button then press"2 5 8 0"
Support Digital Signal and Russian
Colour: Black
Material: metal + plastic
Controller chip: LUA63A82
TV tuner chip: Rafael R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Chip Audio:
Audio output power: 2x8W
Consumption: operating e -Greater than = 6W
simple - Less than 0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
HDMI
VGA
AV IN
YPbPr
Supported resolutions:
1024 X 600 6 bit 1 channel
1024 X 768 6-bit 2 channel
1024 X 768 8-bit 2 channel
1024 X 768 6-bit 1 channel
1024 X 768 8-bit 1 channel
1280 X 768 8-bit 1 channel
1280 X 800 6-bit 1 channel
1280 X 1024 8-bit 2 channel
1366 X 768 8-bit 2 channel
1366 X 768 8-bit 1 channel
1400 X 1050 6 bit 2 channel
1440 X 900 8 bit 2 channel
1600 X 900 8-bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2 channel
1920 X 1080 8-bit 2 channel
1920 X 1080 6-bit 2 channel

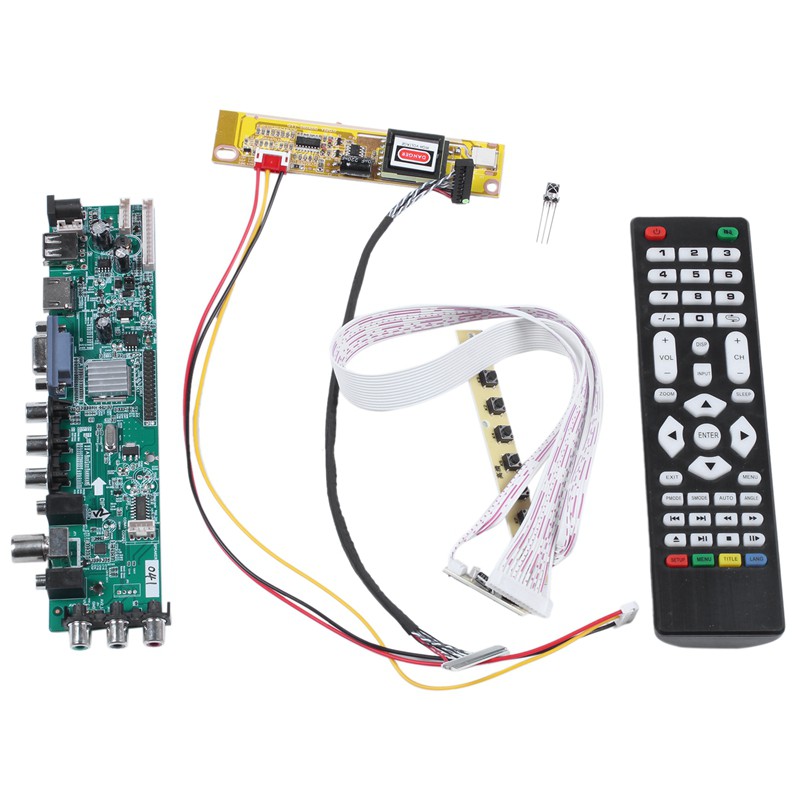

Package:

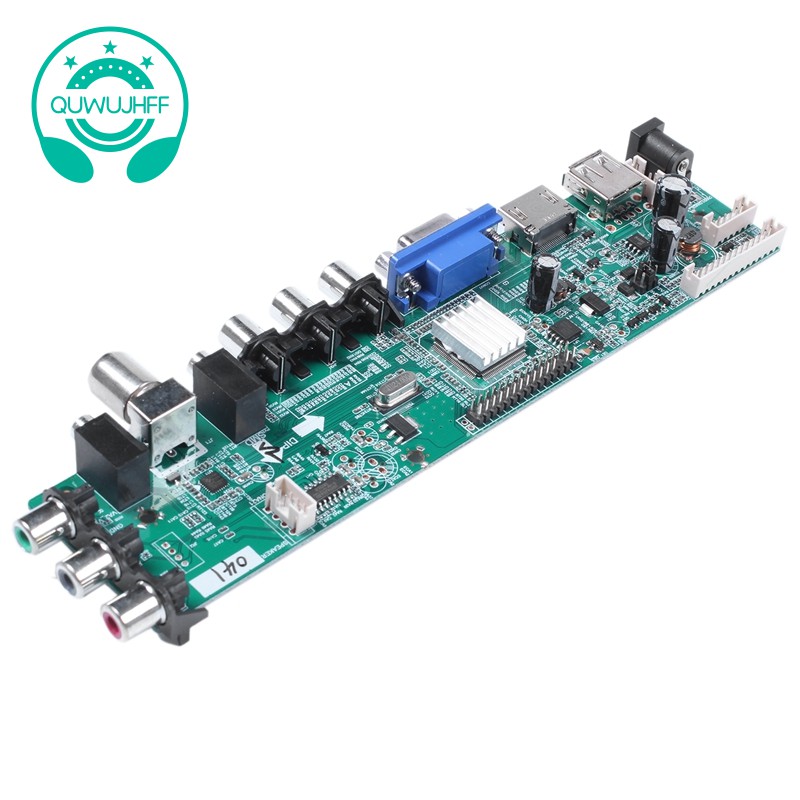

1 * Board

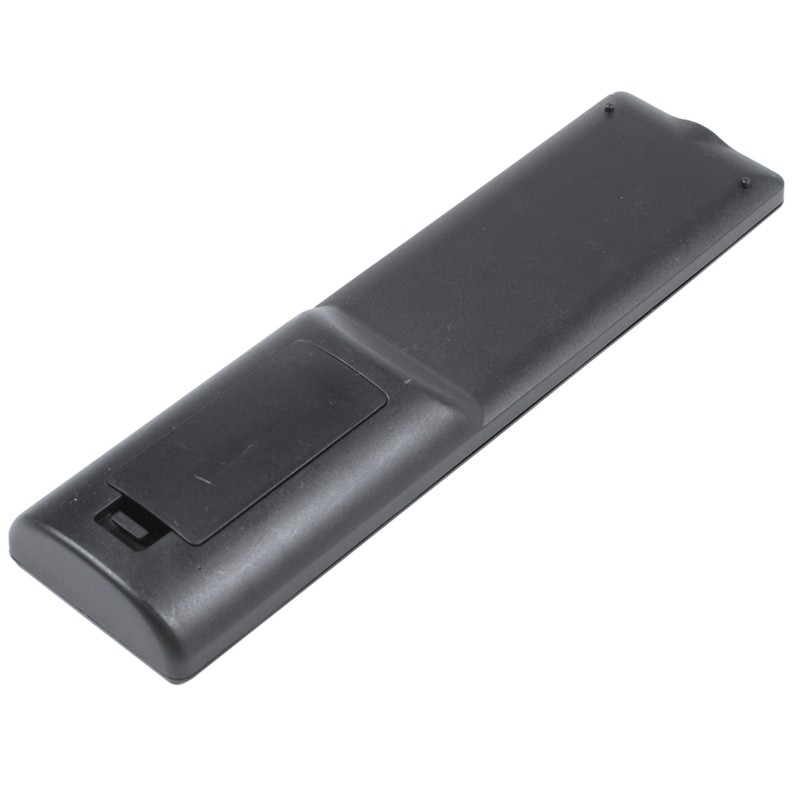

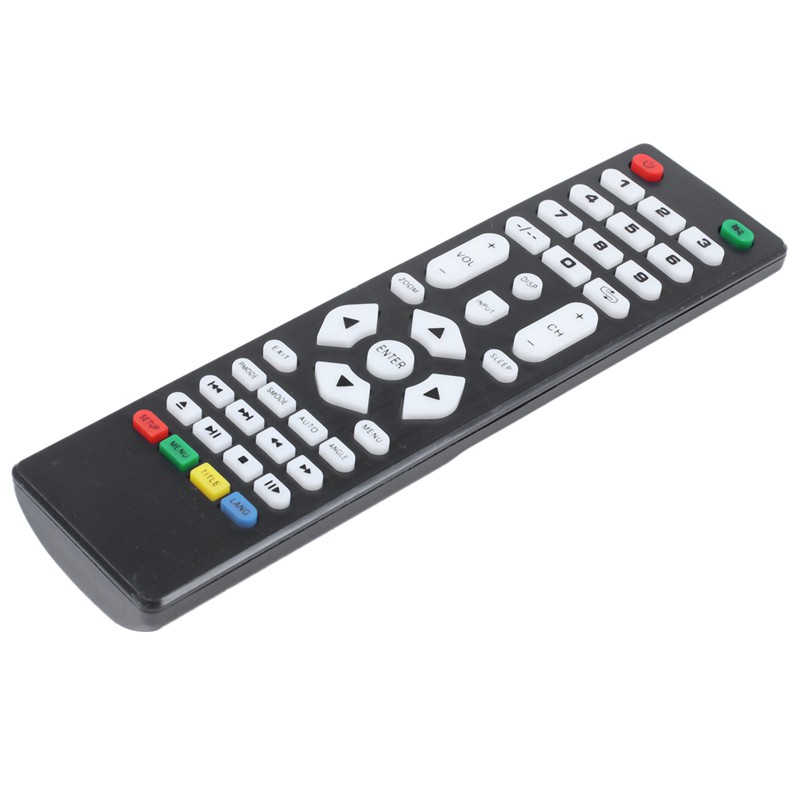

1 * Remote
1 * IR

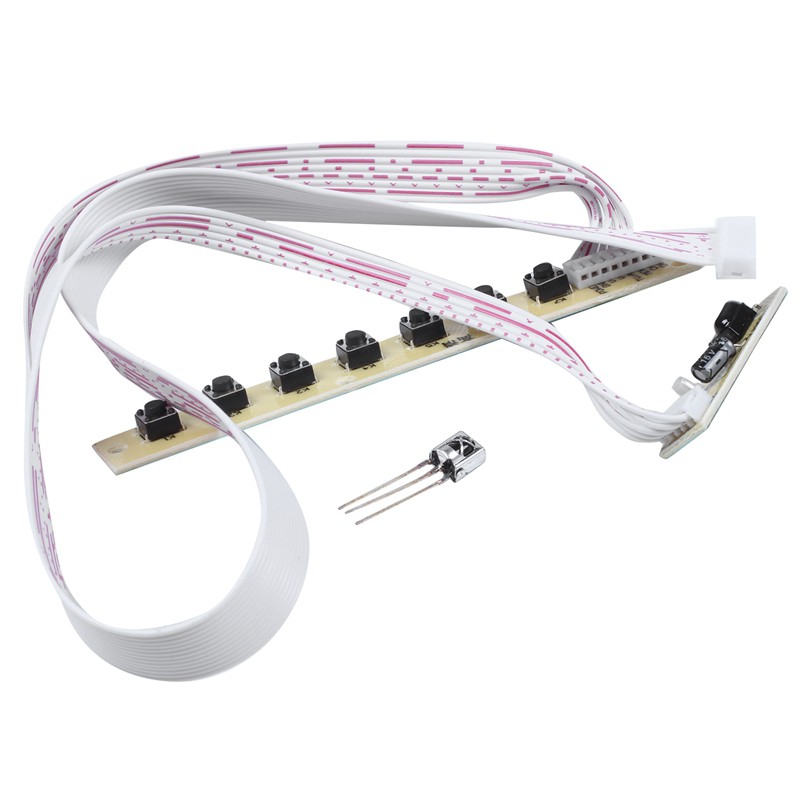

1 * 7 Key Switch

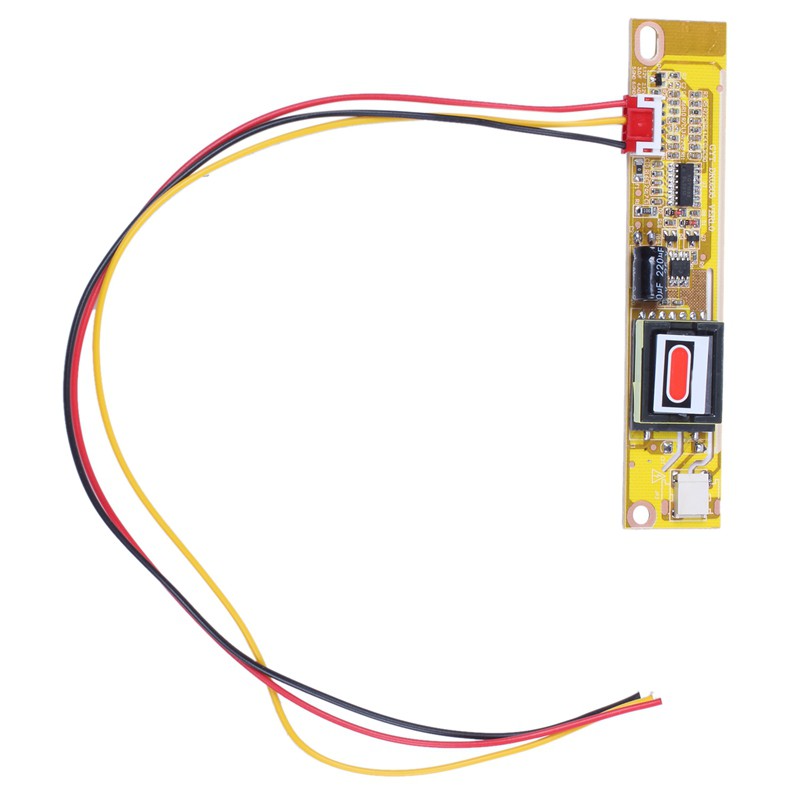

1 * 1 Lamp Inverter
1 * Dupont Line

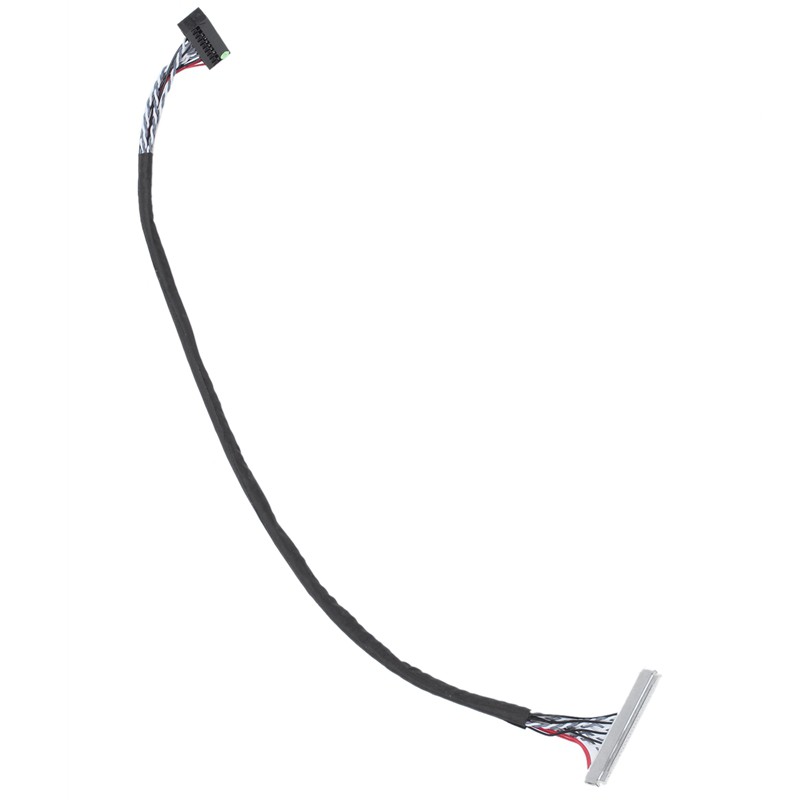

1 * 1 Ch 6-bit 30 pins DS Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
