Bo Mạch Chủ 32-bit Mks Sbase V1.3 Cho Máy In 3d

Giới thiệu Bo Mạch Chủ 32-bit Mks Sbase V1.3 Cho Máy In 3d

___________________________________♤Dressit.vn 3C♤_______________________________
Welcome to DRESS 3C Guarrantee:
✔Ready Stock✔Good quality✔Cheapest price ✔ Brand new 100%
❤❤Surprises for you❤❤
❀Follow shop/ “Like” Items: Priority Shipping & Free Gift
☞PS: New Store,always the best price, wish your kindly support ！！


Features:
Using 32-bit 100M Cortex-M3 LPC 1768 main control chip, performance greatly improved.
Support for highly modular open source firmware for easy secondary development, eliminating the hassle of not being able to master the core code.
Support network functions, through the network line can be directly connected to the network, the use of the browser can achieve remote control.
Using 8825 as motor drive, supporting 32 subdivisions, performance far exceeds 4988, using SOP package, better heat dissipation.
The stepping motor current is set directly, and there is no need to worry about damaging the drive or potentiometer when adjusting the current.
Circuit board using high - quality 4 - layer board, and made a special heat dissipation optimization.
Use special power chip, support 12V-24V power input.
It can be connected to 12864LCD and touch screen MKS TFT28.

Specifications:
Material: PCB
Size: Approx. 17*12*2cm/6.69*4.72*0.79inch
Color: As is shown on the photo
Project type: motherboard
Model: MKS SBASE V1.3
Suitable For CNC laser, 3D printer, engraving machine
TLDA: MCU LPC1768
Compatible For Smoothieboard 3D Printer Motherboard Control panel MKS SBASE V1.3 32-bit Motherboard
Auxiliary product(not include):
4 stepper motors
3 limit switches: limit switches

Package List:
1 x Motherboard
1 x USB

Note:
Before power on, please double check whether the positive and negative are connected to the wrong side, if it is because the user is connected to the wrong side of the power supply and burned out, we do not warranty this kind of problem!
Please do not plug or unplug the motor when the power is on, which may cause the drive to burn out;Do not adjust the current while the motor is running.The correct way to do this is to disconnect the power supply, unplug the motor, and then power it up again. Adjust the potentiometer and measure the voltage on the potentiometer until the measured voltage is the same as expected.
At present, MKS SBASE can only use TFT series and LCD12864 display, but not 2004, OLED display.

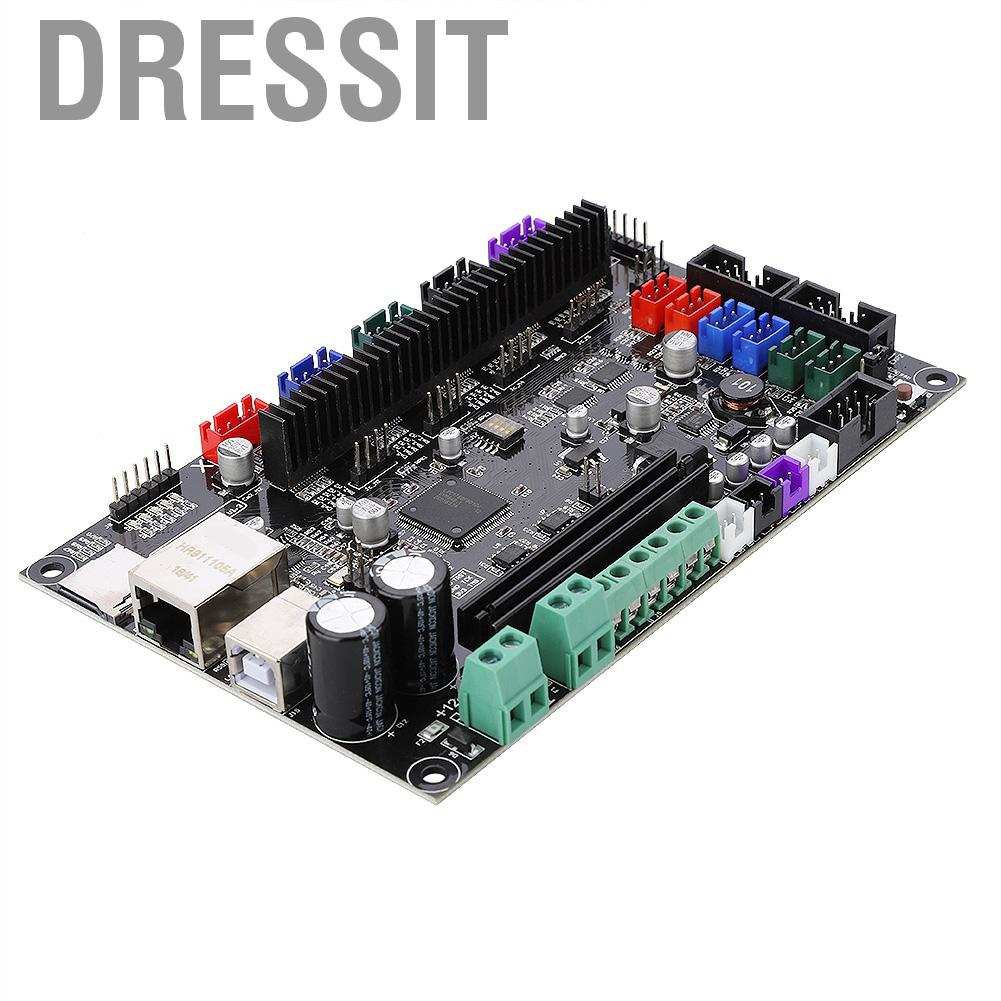

Hình ảnh sản phẩm
