Bảng Mạch Sạc Không Dây Qi 5w Pcba Với Cuộn Dây

Giới thiệu Bảng Mạch Sạc Không Dây Qi 5w Pcba Với Cuộn Dây

🎉🎉🎉 Welcome to my shop, wish you have a happy day!!!

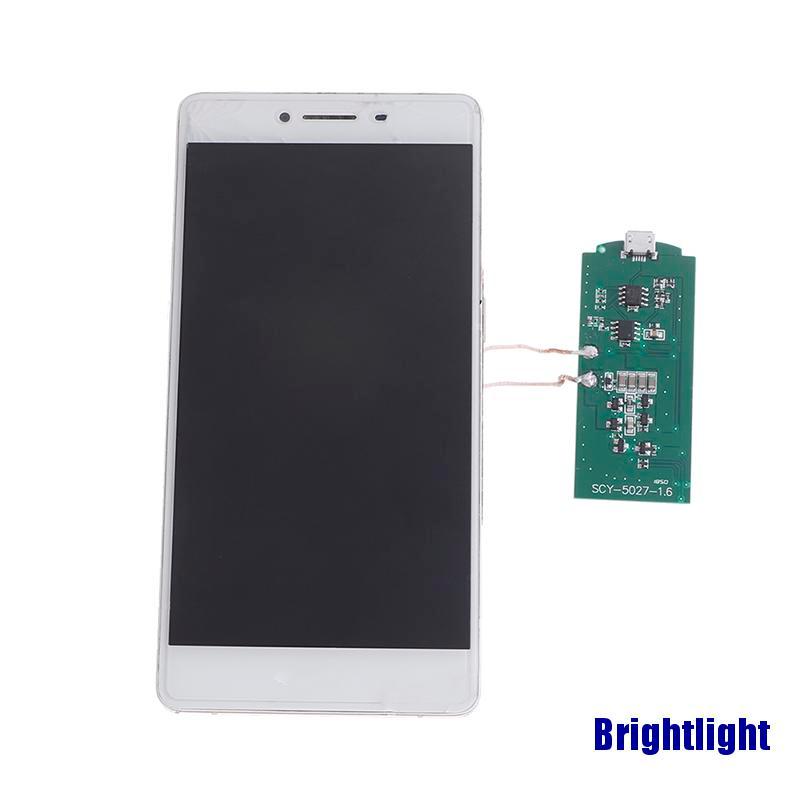

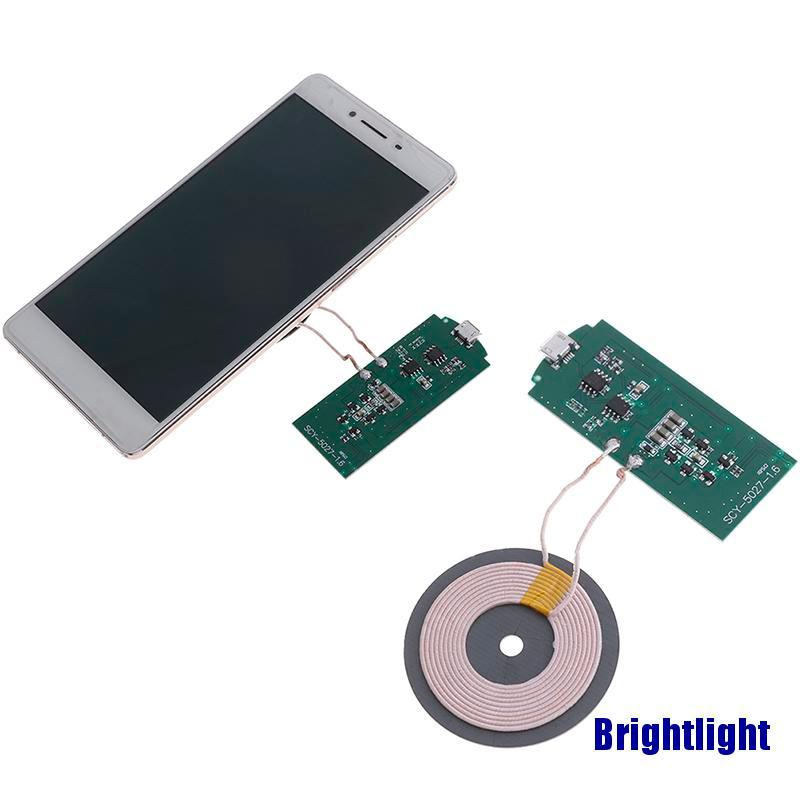

(Brightlight) 5W QI Wireless charger module transmitter PCBA circuit board with DIY coil

Specification:
-100% brand new and high quality
-Product Certification: CE/FCC, compatible with QI certified standards;
-Standards: Qi wireless charging standard
-Standby power: average power is less than 30 mW;
-Conversion efficiency: greater than 73 %
-Transfer distance: maximum 10mm, recommended transceiver distance 2 mm~4 mm
-5W Qi Wireless Charger PCBA Circuit Board with Coil Wireless Charging Pad DIY,allows to charge for any Qi-enabled device.
-Input voltage: DC4.3V~5.5V/1.5~2A, over this range of voltage alarm and stop charging;
-Output voltage: 5V±0.1V; Charging current: 500mAh-1000mAh;Charging power: maximum can reach 5 W
-Over temperature protection: when the temperature is higher than 60 degrees,it will automatically stop charging for 1 minute, and then the temperature is lower, it will re-charge.
-Over current protection: when the current is over 1.5A, it will automatically stop charging to avoid damage the electrical devices.
Package Includes:1x Wireless Charger PCBA Circuit Board with Coil
