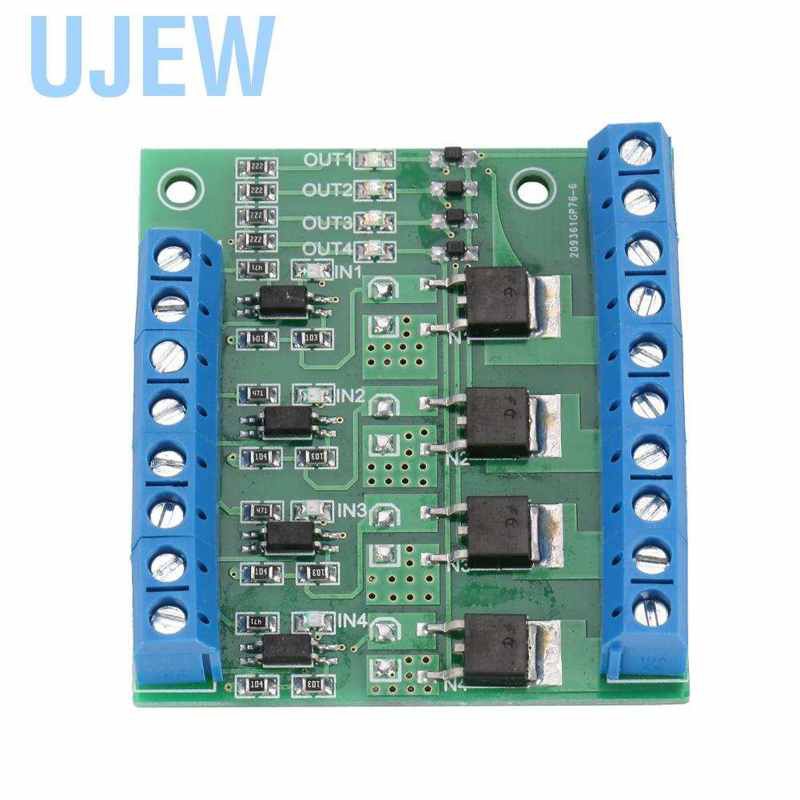

Giới thiệu Bảng Mạch Khuếch Đại Âm Thanh Plc 4ch Mos Fet 3-20v ~ 3.7-27vdc
___________________* ❤❤ * ujewndju* ❤❤ * ___________________ Welcome to our store, we insist on the lowest price to sell the best quality items. ✔Ready Stock ✔Wholesale Price ✔Quality Checked
☀️☀️ Surprises for you ☀️☀️ ☞Shop Voucher: Get More Discount ☞Follow Shop: Free Gifts ✈Shipping in 1 day Tip: If you want a free gift, please send me the screenshot that you follow my shop
☀️☀️ Attention ☀️☀️ ❀We will be based on your guests in your country to send the corresponding adapter plug. ➷Wholesale retailers are welcome to negotiate long-term business with us! #ujewndju
Features: 1. Using high quality ultra-small optocoupler, with strong anti-interference ability and stable performance. 2. The input signal and output signal is completely isolated. 3. With input/outpt signal indicator. 4. Onboard screw terminal block for quick wiring. 5. The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.

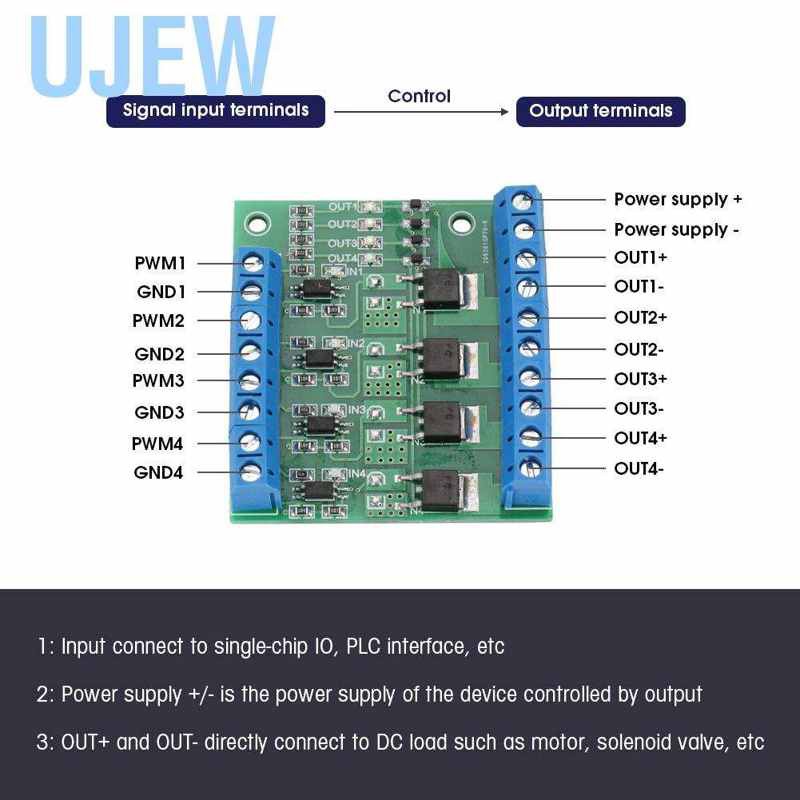

Specification: Model: YYNMOS-4 Input signal: 3~20V PWM signal PWM frequency: 0~1kHz Output capacity: DC 3.7V~27V, current of each channel ≤ 10A Weight: 27g (approx.) Wiring terminal description: 1. DC+: DC power supply positive 2. DC-: DC power supply negative 3. PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc.) 4. GND: Signal negative terminal 5. OUT+: Output positive terminal (connected to the device positive) 6. OUT-: Output negative terminal (connected to the device negative)
