Bảng Mạch Giải Mã Mp3 Bluetooth 5.0 5v 12v Cho Xe Hơi

Giới thiệu Bảng Mạch Giải Mã Mp3 Bluetooth 5.0 5v 12v Cho Xe Hơi

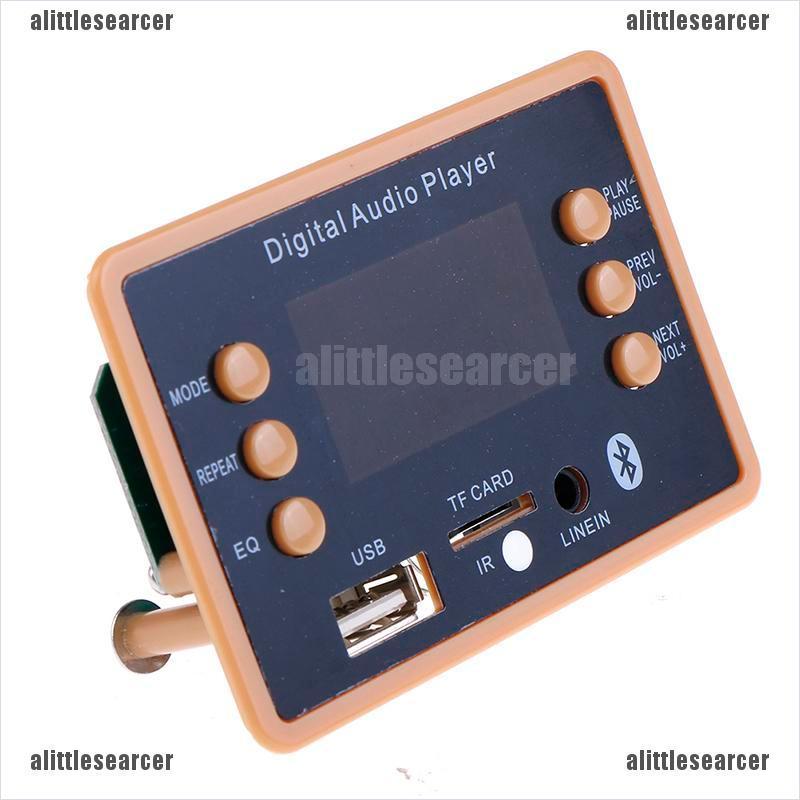

【RCER】Bluetooth 5.0 MP3 Decoder Decoding Board Module 5 v 12v Car USB MP3 PlayerFeature:
MODE: USB / TF / FM / LINE IN / BLUETOOTH voice switching;
REPEAT: Press once to cycle through singles, press again to cancel cycle through singles;
EQ: sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);
LED: digital screen display, yellow;
PLAY / PAUSE: short press is to switch between pause and play; long press is radio FM automatic station;
PREV / VOL-: short press is to select the previous song; long press is to decrease the volume;
NEXT / VOL +: short press is to select the next song; long press is to increase the volume;
USB: connect U disk (up to 32GB);
TF: Connect TF memory card (up to 32GB)
⑩IR: infrared receiving module;
⑾LINE IN: audio input interface;
Master IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 5V or 12V (optional)
About the structure: panel size: 78 * 58 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM

Package:

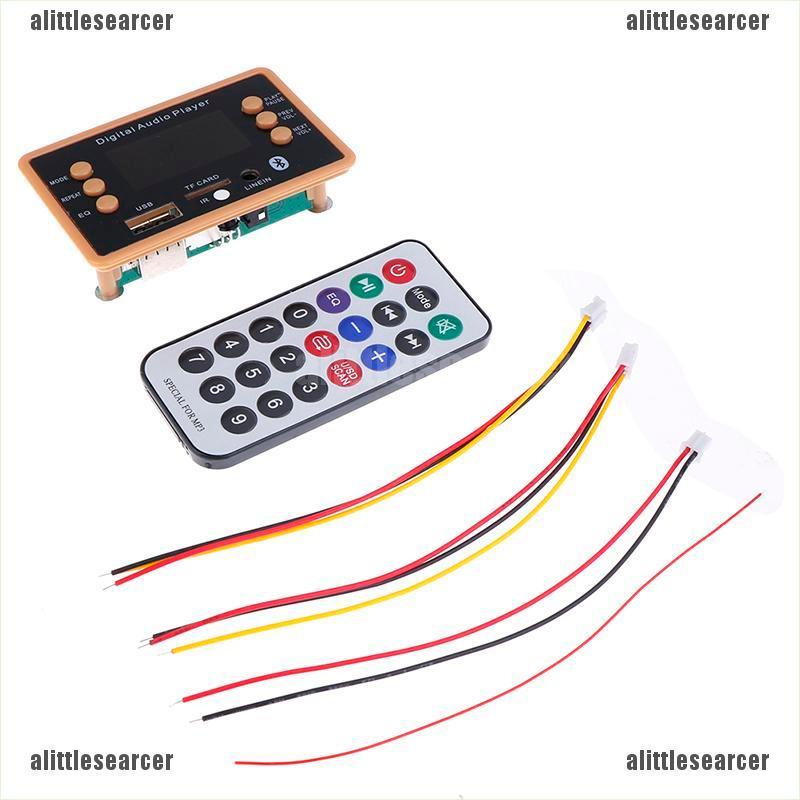

1 x MP3 Decoder Board
1 x Remote Control

Note:
1. Due to the light and screen difference, the item/'s color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.

Hình ảnh sản phẩm
