Bảng Mạch Giải Mã Không Dây Bluetooth Mp3 12v Cổng Usb

Giới thiệu Bảng Mạch Giải Mã Không Dây Bluetooth Mp3 12v Cổng Usb

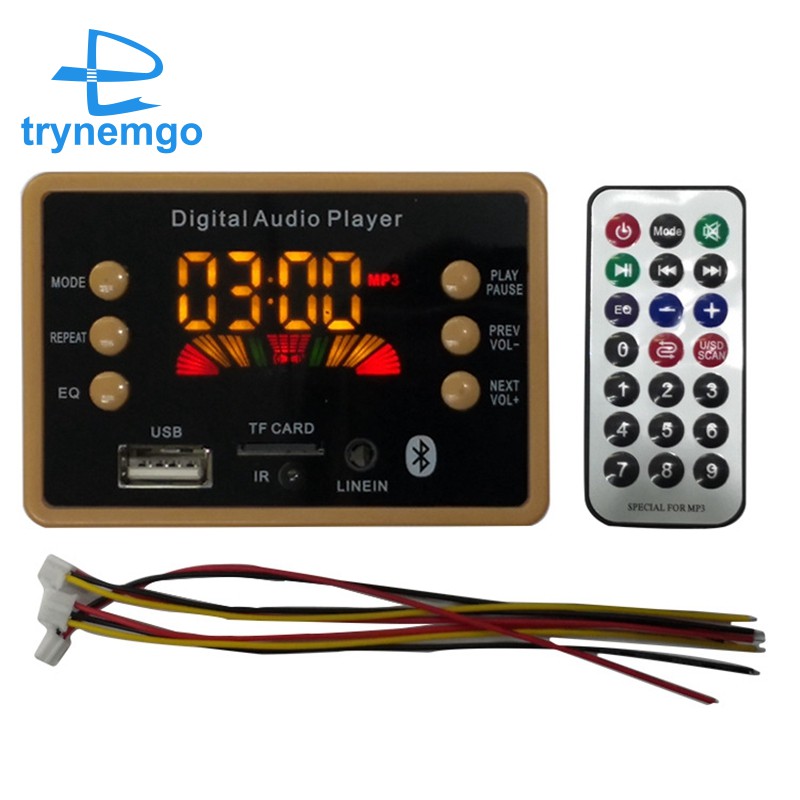

1.E: USB / TF / FM / LINE IN / BLUETOOTH;
2.REPEAT: Press once to cycle through singles, press again to cancel cycle through singles;
3.EQ: sound field e, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);
4.LED: digital screen display, showing yellow;
5.NEXT/VOL : short press is to select the next song; long press is to increase the volume;
6.PREV / VOL-: short press is to select the previous song; long press is to decrease the volume;
7.PLAY/PAUSE: short press is the switch between pause and play; long press is the radio FM automatic station;
8.USB: connect U disk (maximum support 32GB);
9.TF: Connect TF memory card (up to 32GB)
10.IR: infrared receiving ule;
11.LINE IN: audio input interface;
Color: black + gold
Material: ABS
Master IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control
About the structure: panel size: 78 x 53 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM
Package contents:
1 x MP3 Decoder Decoding Board
1 x Remote ControlOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
