【ION】SAMD21 Cortex M0 + SAMD21 48MHZ Cortex M0+ USB Type-c SPI Micro-Controller BoardFor XIAO Microcontroller-SAMD21 Cortex M0 + Nano SAMD21 48MHZ Cortex M0+ USB Type-c SPI Micro-Controller Board For Arduino

Description

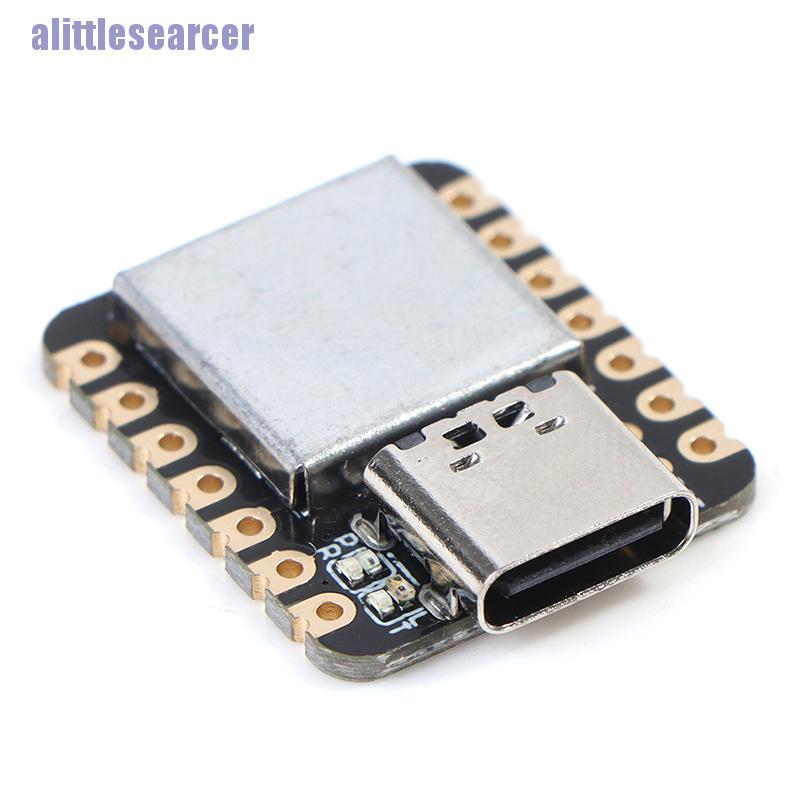

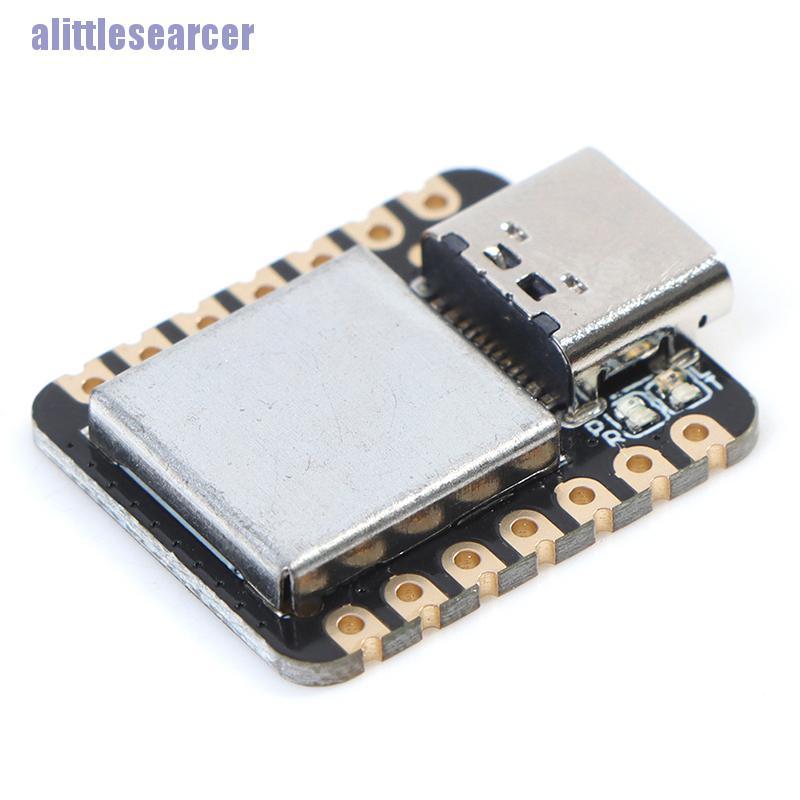

Seeeduino XIAO Arduino microcontroller-SAMD21 Cortex M0+ is the smallest member of the Seeeduino series.
Seeeduino XIAO is the smallest Arduino compatible board in the Seeeduino series.
This is an Arduino microcontroller embedded with the SAMD21 chip.
The interfaces of Seeeduino XIAO is rich enough in such a tiny Dev. Board as well. On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.
Key Features
1.Powerful CPU: ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21G18) with 256KB Flash,32KB SRAM
2.Flexible compatibility: Compatible with Arduino IDE
3.Easy project operation: Breadboard-friendly
4.Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects.

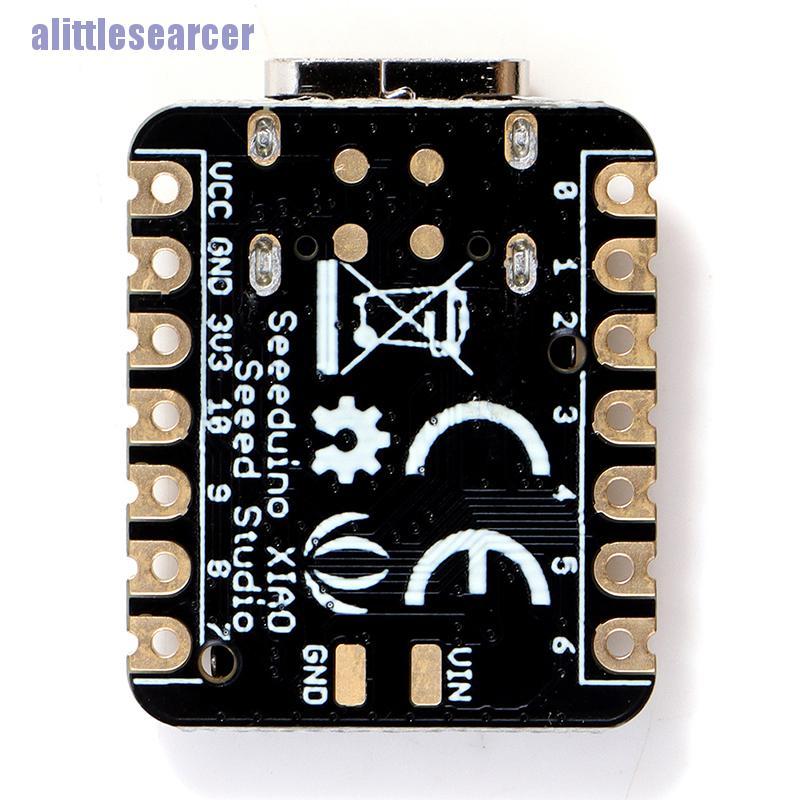

5.Multiple development interfaces: 11 digital/analog pins, 10 PWM Pins, 1 DAC output, 1 SWD Bonding pad interface, 1 I2C interface, 1 UART interface, 1 SPI interface.
Specification
1.CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
2.Storage: 256KB Flash,32KB SRAM
3.I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
4.Interface: 1 I2C interface,1 UART interface, 1 SPI interface
5.Power supply and downloading interface: USB Type-C interface
6.LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
7.Reset button: two reset button short connect to reset
8.Power Pads: For the battery power supply
9.Software compatibility: Compatible with Arduino IDE
Projection cover for protecting the circuit
10.Dimensions: 20x17.5x3.5 mm
Application
1.Wearable devices
2.Rapid prototyping (directly attached to the expanded PCB as a minimal system)
3.Perfect for all the projects need mini Arduino
4.DIY keyboard
5.USB development (USB to multi-channel TTL/USB host mode, etc.)
6.A scenario where you need to read multiple mock values The DAC output

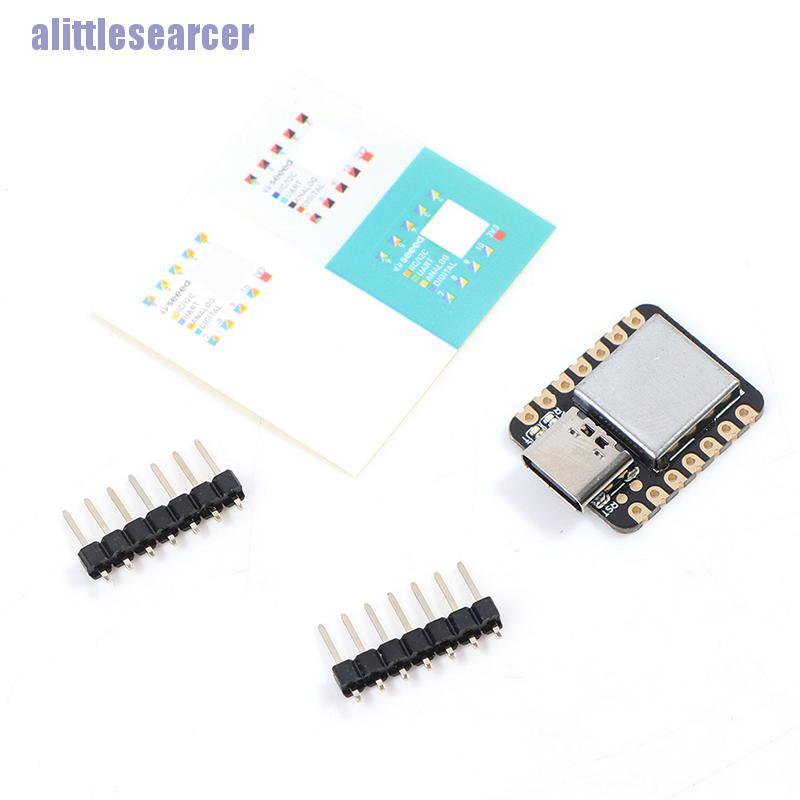

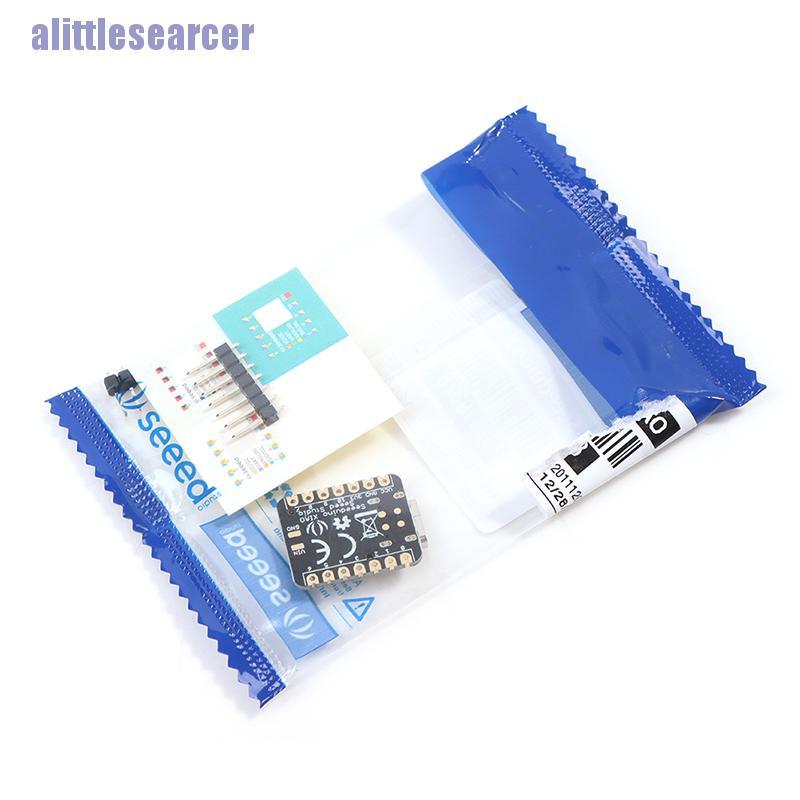

PACKAGE CONTENT
1. 1 x Seeeduino XIAO - Arduino Microcontroller - SAMD21 Cortex M0+

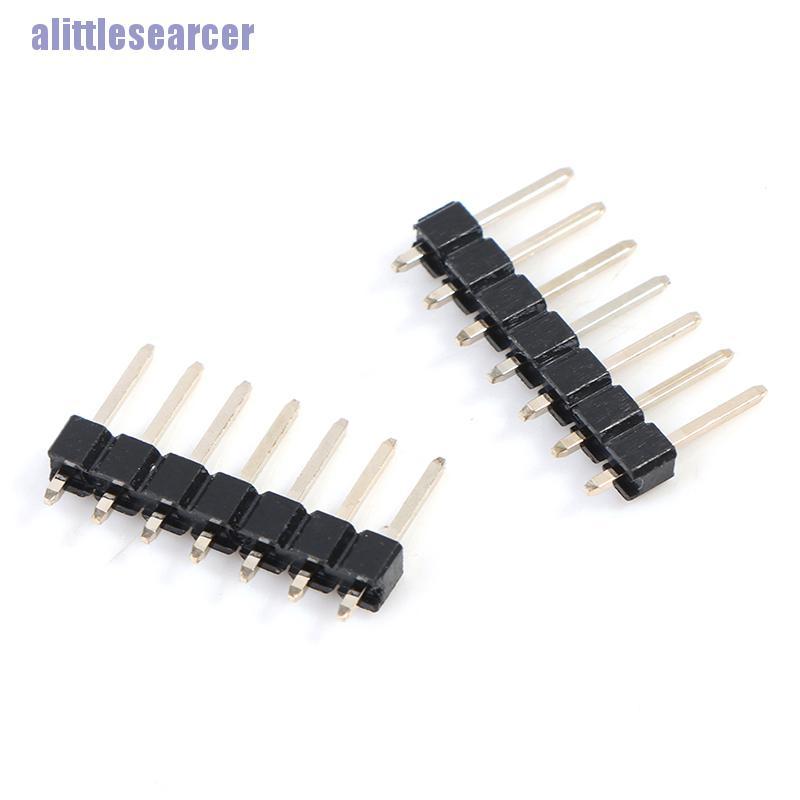

2. 2 x 7pins header

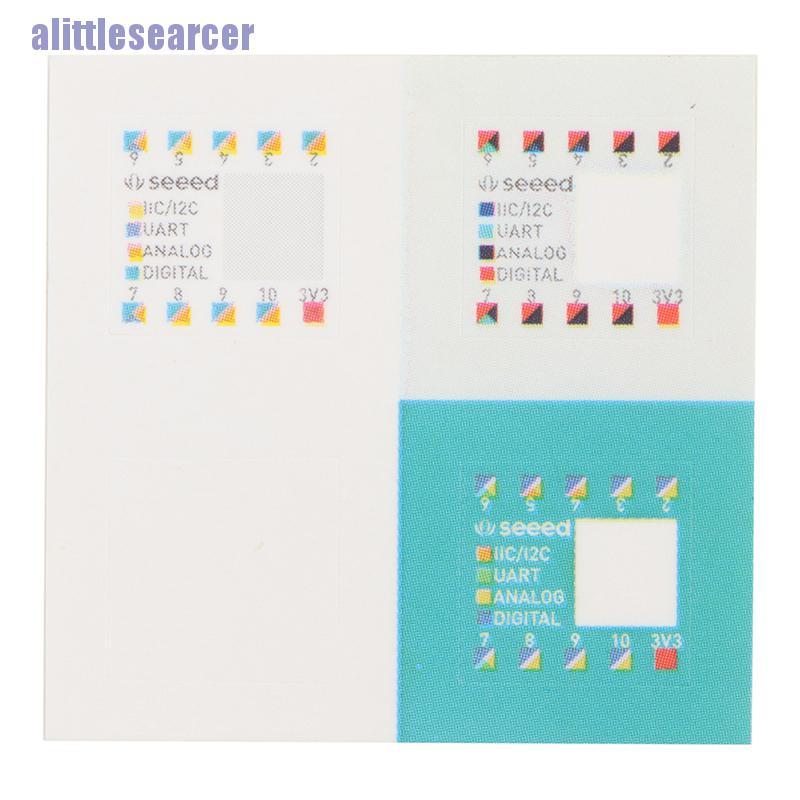

3. 4 x pasters
