Bảng Mạch Điều Khiển Động Cơ Bước Tb6600 Đơn Axis 4a 9~40v Micro-Step Cnc

Giới thiệu Bảng Mạch Điều Khiển Động Cơ Bước Tb6600 Đơn Axis 4a 9~40v Micro-Step Cnc

Feature:

Brand new and high quality.
Product Features:

Material: Electrical components

Color: See pictures

42/57/86 TB6600 Stepper Motor 32-segment driver updated version 4.0A 40VDC for CNC milling machine

Specifications:

This unit is an upgraded version of TB6600, the breakdown of increase to 32 segments, for high targeting purposes. Applicable stepper motor: 42.57, 86 Phase type phase (4 wire 6 wire 8 wire line)
1. 9 V-42V DC power supply;
-H-bridge Bipolar constant-phase flow-driven;
-the maximum output current of 4.0A eight optional;
-up to 32 segments of six types of sub-modes available;
-the input signal is high-speed optical insulation;
-standard common anode single pulse interface;
-HOLD function offline;
-semi-closed chassis can accommodate the most demanding environment;
-provide semi-automatic current locking function;
-built-in thermal protection and overcurrent protection.
-Size: 9.6*5.5*2.7cm
Package included:
1x TB6600 Single Axis 4A Stepper Motor Driver Controller 9~40V Micro-Step CNC
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

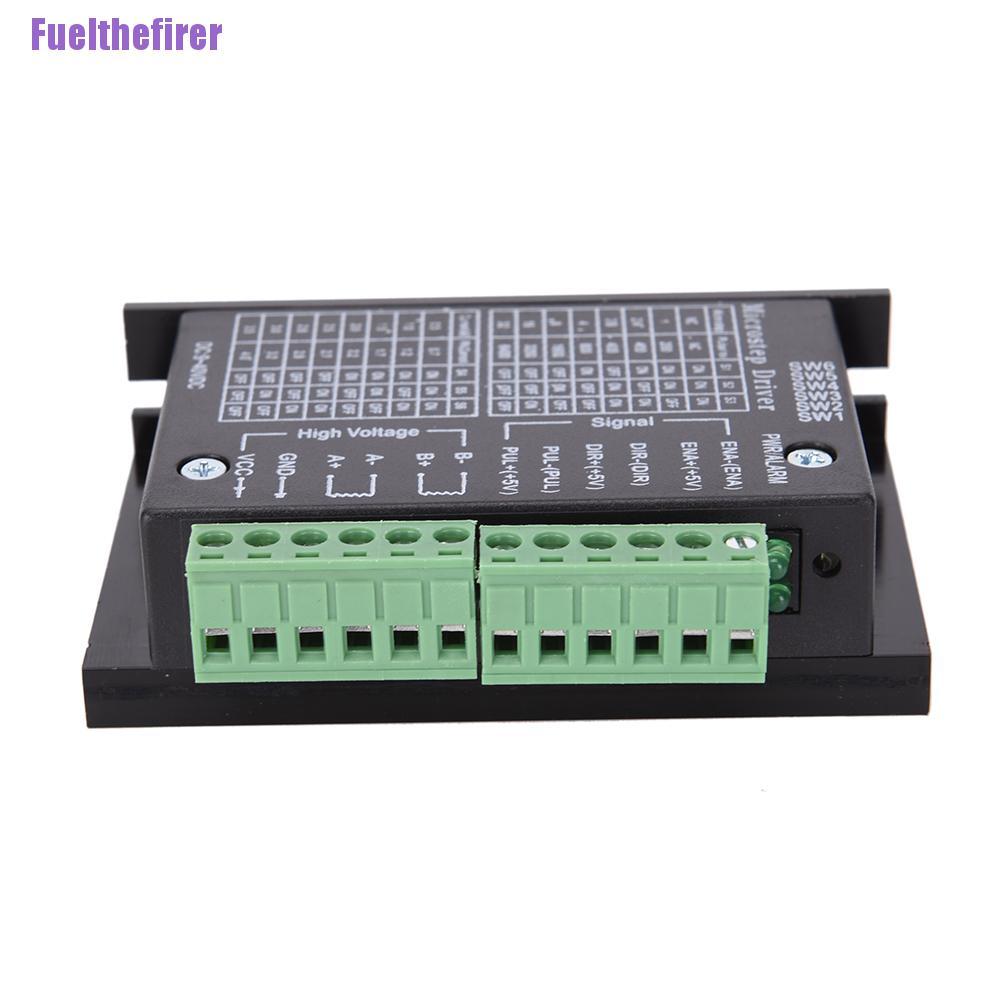

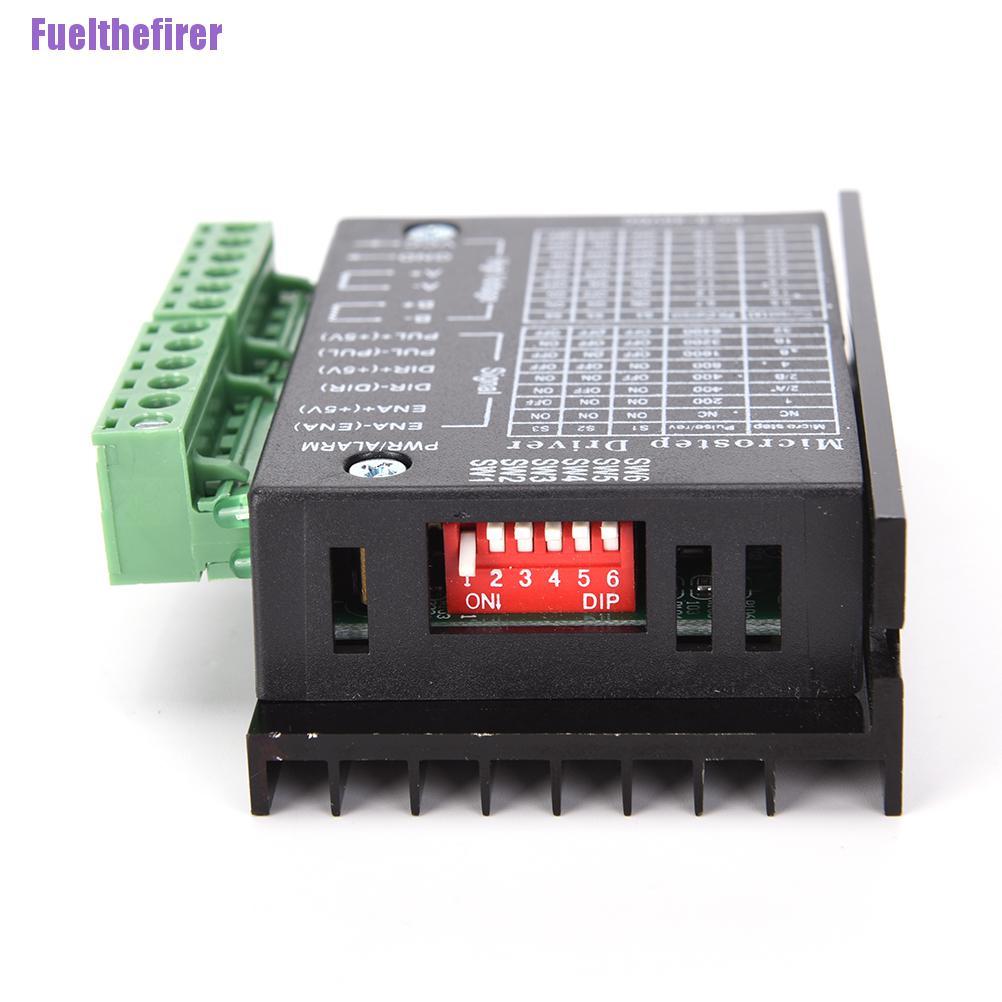

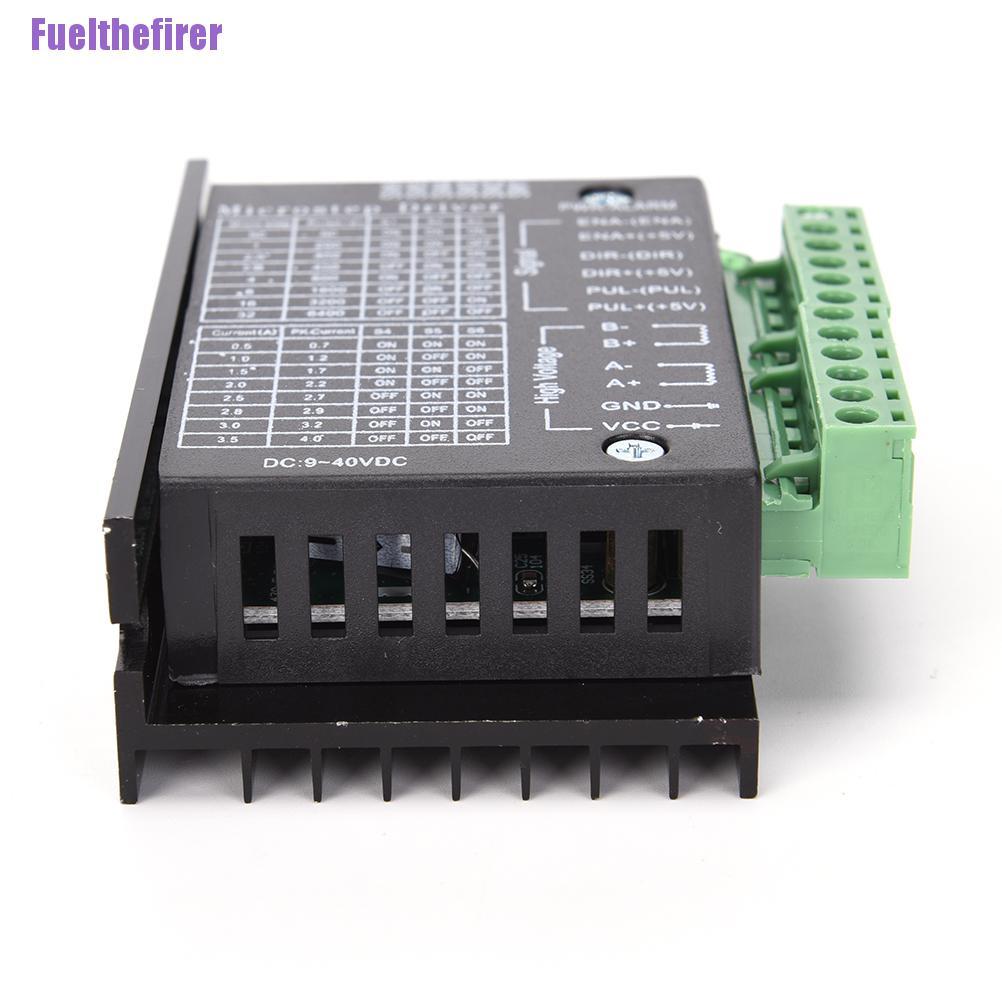

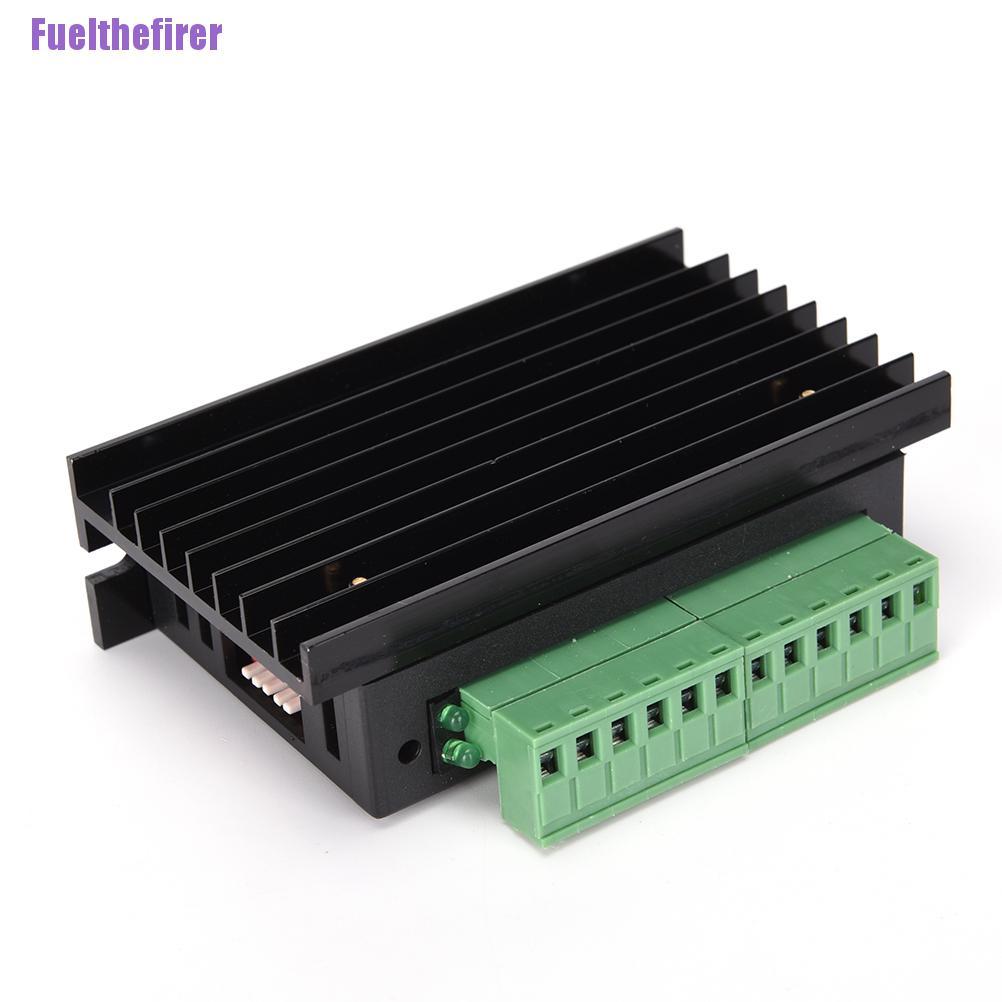

Hình ảnh sản phẩm
