Bảng Mạch Điều Khiển Âm Lượng 107ele Ac12V-0-12V Ne5532

Giới thiệu Bảng Mạch Điều Khiển Âm Lượng 107ele Ac12V-0-12V Ne5532

107ele AC12V-0-12V NE5532 HIFI Tone Plate Pre-amplifier Board Volume Control Panel
Features:
Using original NE5532.
Using Taiwan brand new capacitor as electrolytic capacitor signal main circuit, 2x1000UF capacitors as main filter capacitor, 1A and above rectifier bridge, to ensure stable and strong power supply.
Using 5 rings metal resistors with ±1% accuracy to ensure the machine is with a good SNR.
Using Siemens 1UF coupling as left and right channel input coupling capacitor to make the treble and bass performance perfect.
The PCB is using 1.6mm double-sided plate, 2.0 oz copper thickness, HASL process to ensure the current can pass through better.
Using fully enclosed dust-proof potentiometer to make the performance more stable, more durable than ordinary potentiometer.
Using gold-plated hole IC Block which is replacable


Specifications:
LOW PASS crossover frequency, the upper limit of frequency is adjustable from 50Hz to 150Hz
The switch is for adjusting the phase of subwoofer, the left is the forward (0°); the right is reverse (180°)
Input Way: 2.0 or 5.1 Audio Input
Potentiometer Distance: 25mm
PCB Size: 200*49mm
Power Supply Voltage: AC12V-0-AC12V or AC15V-0-15V
Potentiometer Functions: Low-frequency adjustment, subwoofer volume. CEN volume, SL SR volume, ML MR volume, main volume.




Package Included:
1 x NE5532 HIFI 5.1 Tone Board
6 x Potentiometer Caps

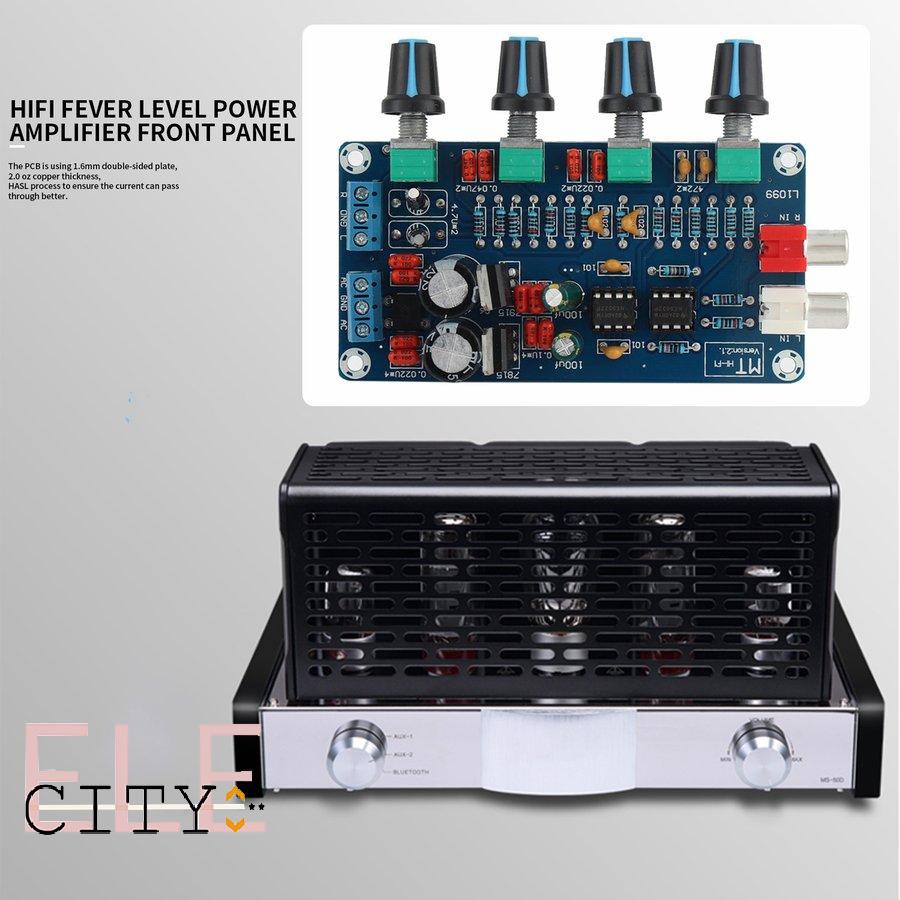

Hình ảnh sản phẩm
