Bảng Mạch Bảo Vệ Pin 12v 16.8v 21v 100a Li-Ion Pcb (4S)

Giới thiệu Bảng Mạch Bảo Vệ Pin 12v 16.8v 21v 100a Li-Ion Pcb (4S)

Accessory Type:Battery Accessories

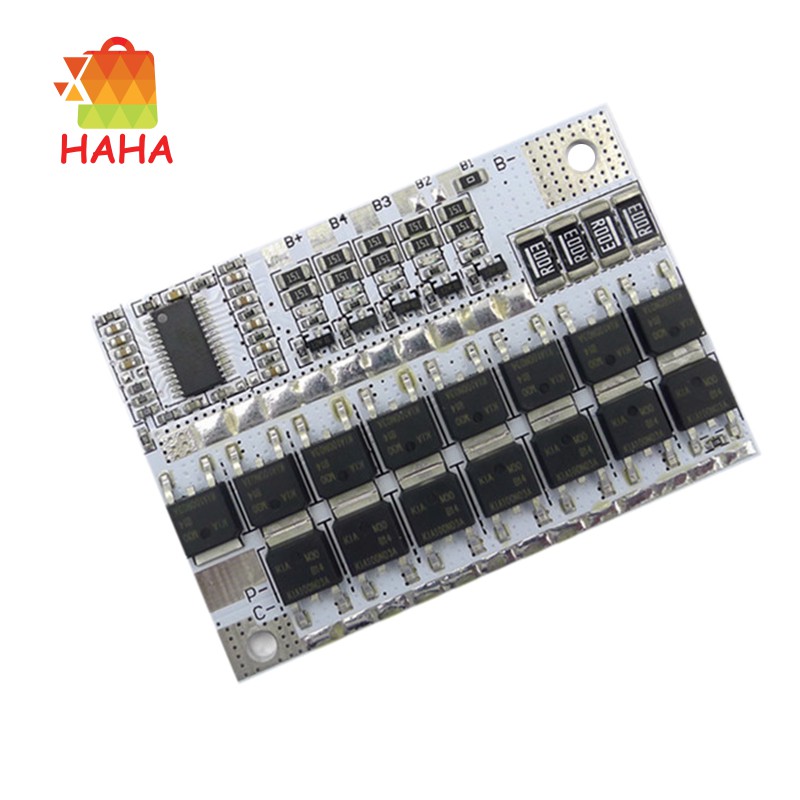

This protection board is in common use lithium battery protection board (you can adjust for how many strings to be used)
Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

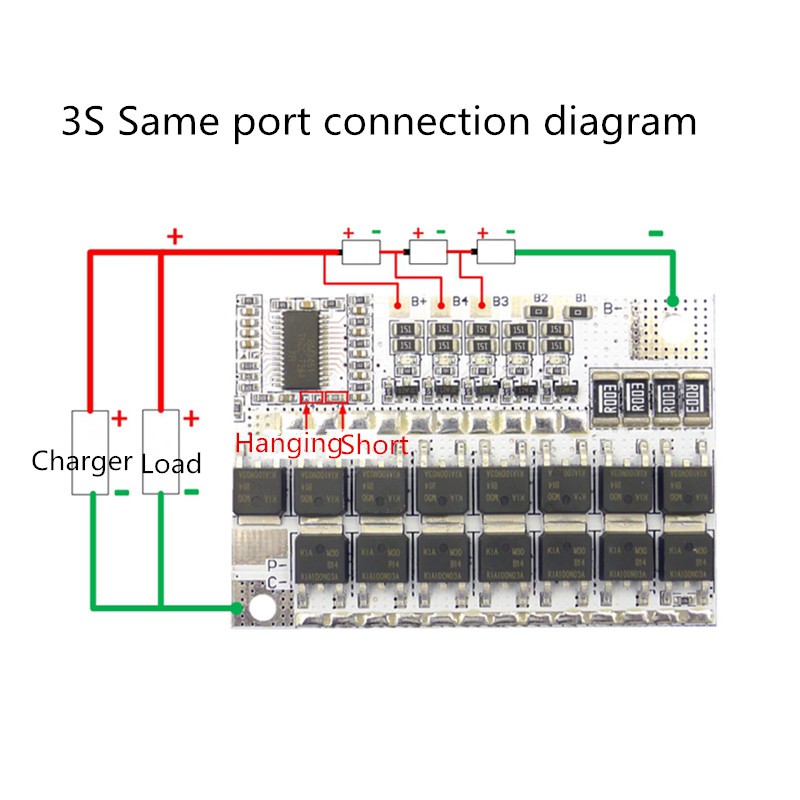

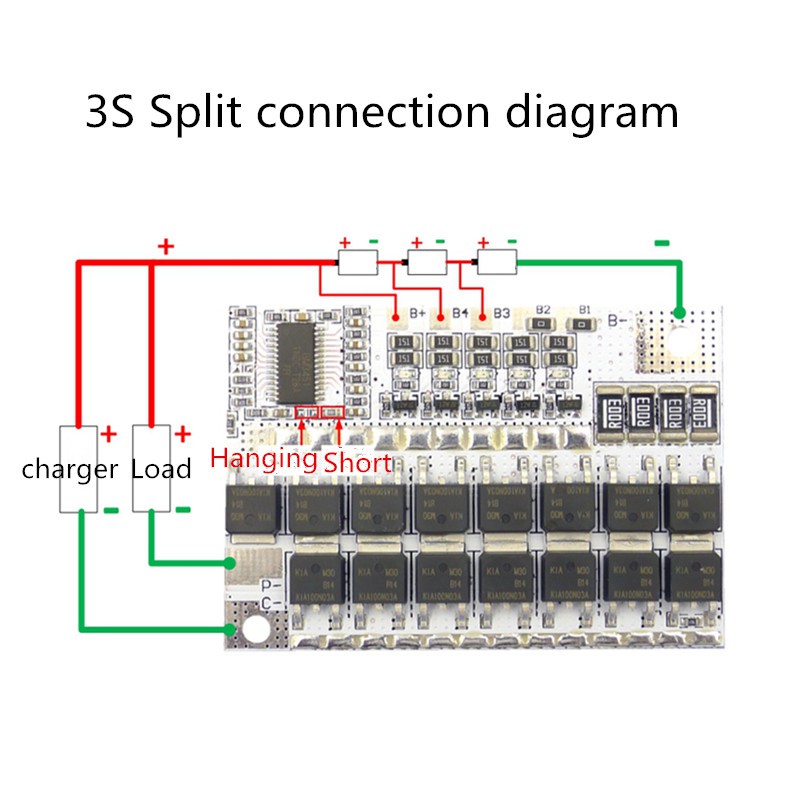

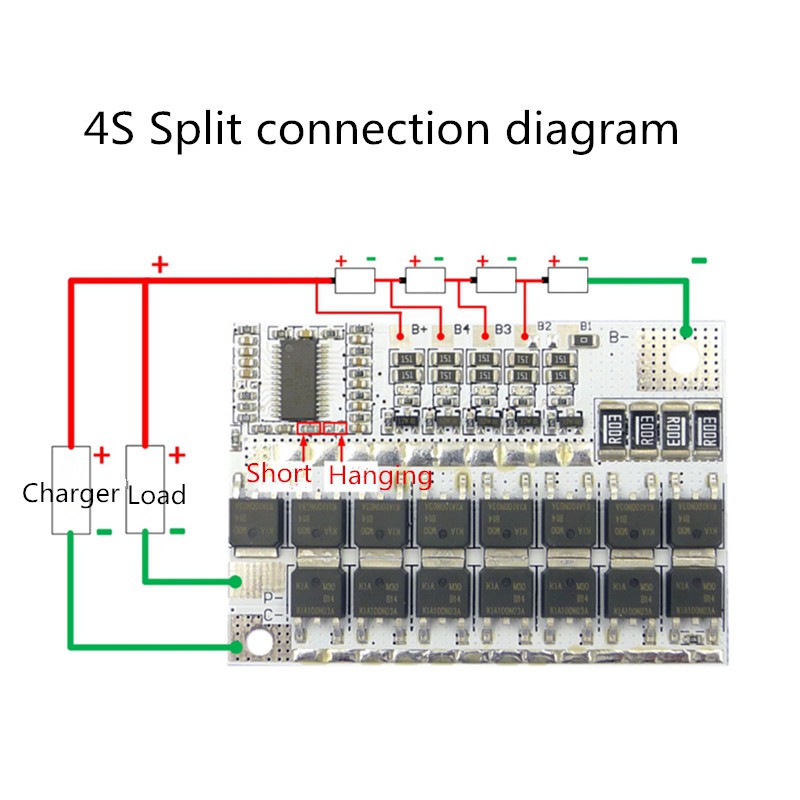

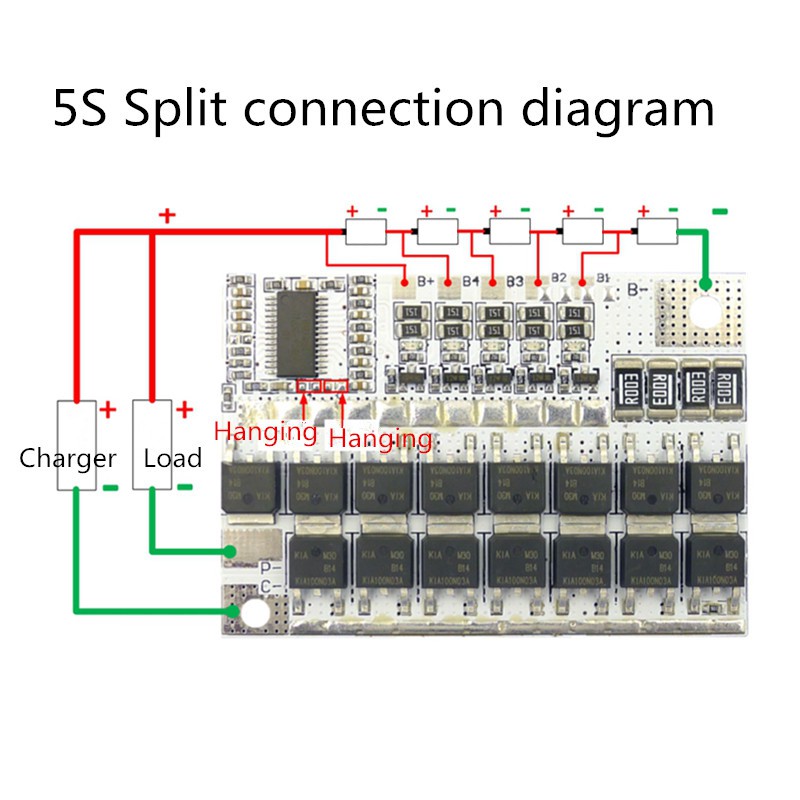

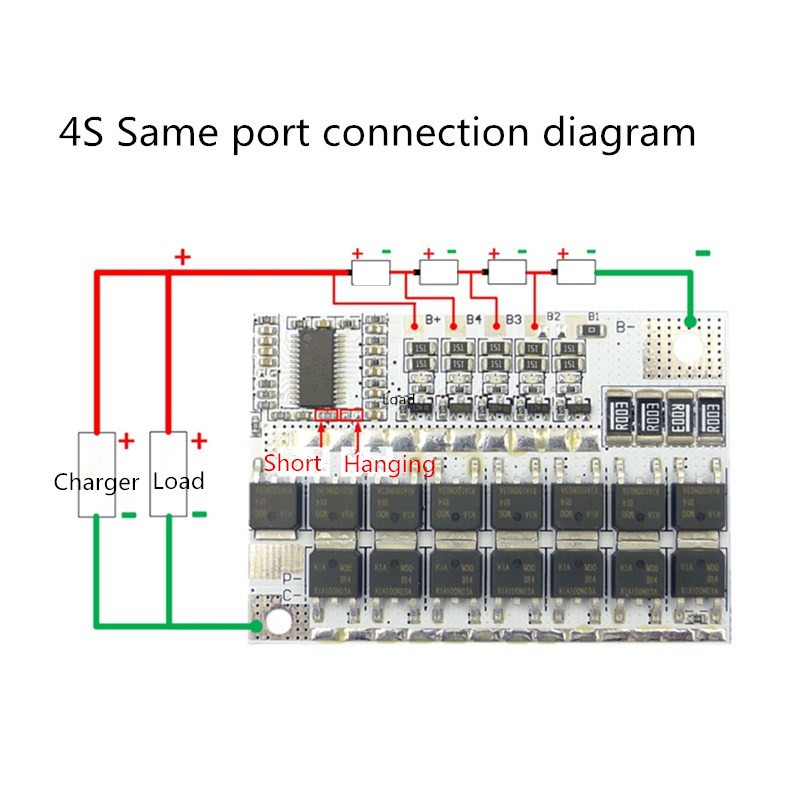

Common use for "same port" and "different port", the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port e can support the discharge current 60A, charging current 60A; different port e discharge current 80A, charging current 60A.
Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover e: Off load release.
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V
el Number:4S/5S/3S
colour:black
Material:PCB
size:62*42*4mm
Package Contents:
1 * Protection Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
