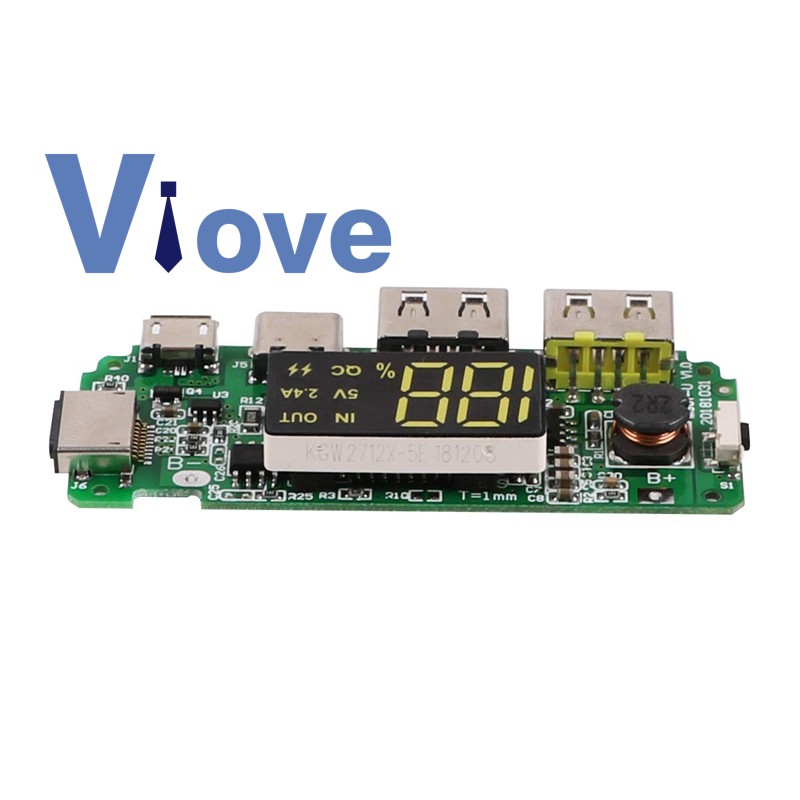

Bảng Mạch Bảo Vệ Cổng Sạc Usb 2.4a 18650

Giới thiệu Bảng Mạch Bảo Vệ Cổng Sạc Usb 2.4a 18650

Charging cable: support three type of USB Cables for iPhone Apple interface & Andriod Type-C Micro- USB.Button function: Press and hold the button after standby, the LED digital screen displays the power
[LED Indicator Display]The LED digital screen displays the current battery charge while charging.When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).The system will provide an accurate battery indication after a complete charge and discharge.
Condition: New
Type: Voltage Regulator
el Number: 18650 Battery Charger Power Bank Charging Board
Application:
Operating Temperature:-5 -45 Celsius
Supply Voltage:5V
Dissipation Power:12W
Weight:10.8G
IR of PCM :less than or equal to 65 mΩ
Allowed 0V change:Yes
Constant current:2.4A
Dual output current:5V 2.4A
Input voltage B+ to B-:3.0-4.2V
[Prevent Overcharge Protection]
Detection voltage:4.20+/-0.05V
Release voltage:4.100+/-0.05V
Detection delay time:Less than 200 ms
[Prevent Overdischarge Protection]
Detection voltage:3.0+/-0.10V
Release voltage:3.10+/-0.10V
Detection delay time:Less than 100 ms
[Short Circuit Protection]
Short detection delay time:Less than 50μS
Release Conditions:Cut off load
[Normal Current Consumption]
Normal current consumption of PCM:Max 60μA
Stanby current consumption:Max 50μA
Suggest Working Conditions
Max continuous charge/discharge current:1.5/2.4A
colour:green
Material:ABS
size:6.5 x 2.5 x 0.1cm
Package Contents:
1 x 18650 Charger Power Bank Charging Board
Note:The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
This ule is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
