Bàn nhiệt mk2b chuyên dụng cho máy in 3D Prusa & mendel i2

Giới thiệu Bàn nhiệt mk2b chuyên dụng cho máy in 3D Prusa & mendel i2

Laminate FR4 1.6 +/- 0.15mm
2 layer, 35 μm copper
Black Soldermask - both sides; White Silkscreen - both sides
Power Input: 12V / 24V; Power: 120W
Resistance: under 12V voltage, resistance 1.2 ohms; under 24V voltage, resistance 4.8 ohms
Color: Black
Material: copper
Technology: aluminum plate
Copper plated holes
Dimensions: 214 x 214 x 2mm
12V /24 power arbitrarily connected.
Double-sided, without cable, heating uniformity, printing are smooth.
Wiring are regardless of positive and negative, arbitrarily wiring.
Borosilicate materials, high transparency.
Heating the adhesion are good, plastic parts easily separated after cooling.
Suitable for machine heated circuit boards.
Eliminates the trouble of replace the special plastic film, does not exist the special plastic film reduce viscosity problem.
For print relatively more users, you can purchase two replacement to use.

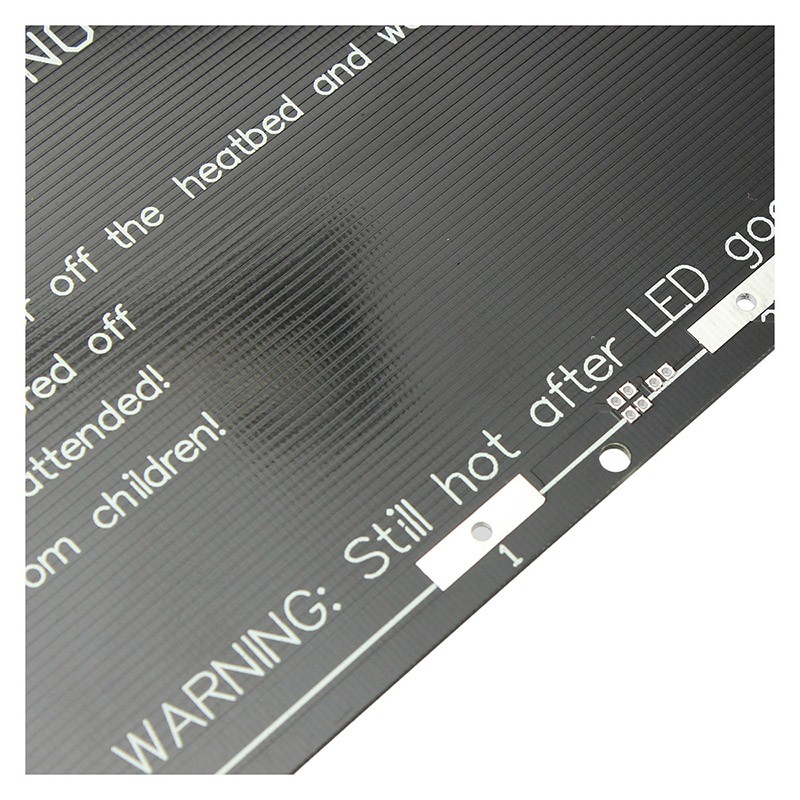

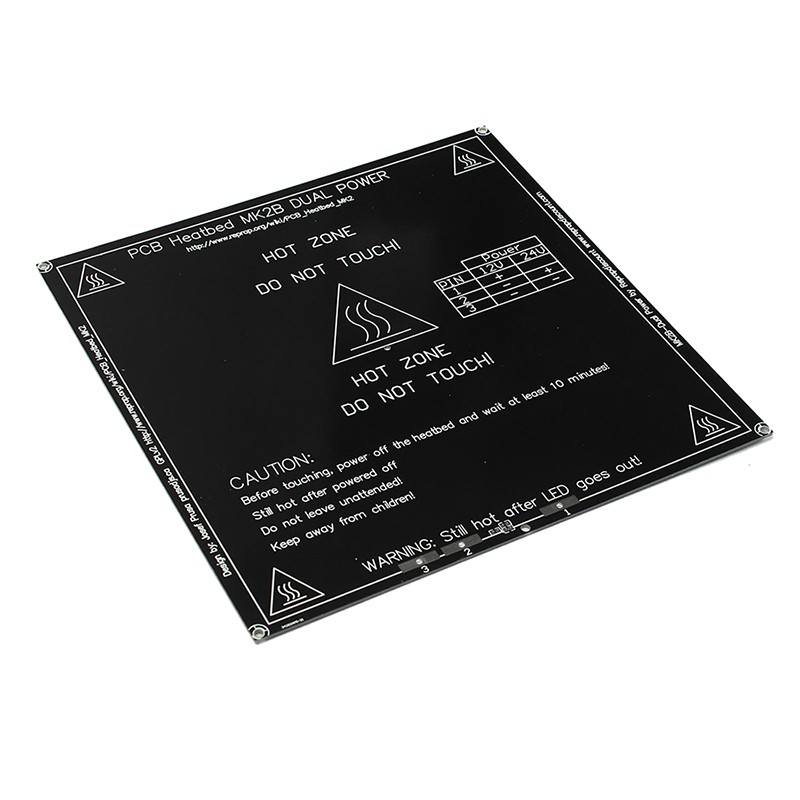

Connect way:(You can see in the picture)
12V connection: A line connected 1, while another receive 2, 3.
24V connection: A cable connected 2, another line connected 3 (1 do not connected).
Package included:
1 x MK2B Heatbed
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
