Bàn Nhiệt 107ele Mk3 12v Cho Máy In 3d

Giới thiệu Bàn Nhiệt 107ele Mk3 12v Cho Máy In 3d

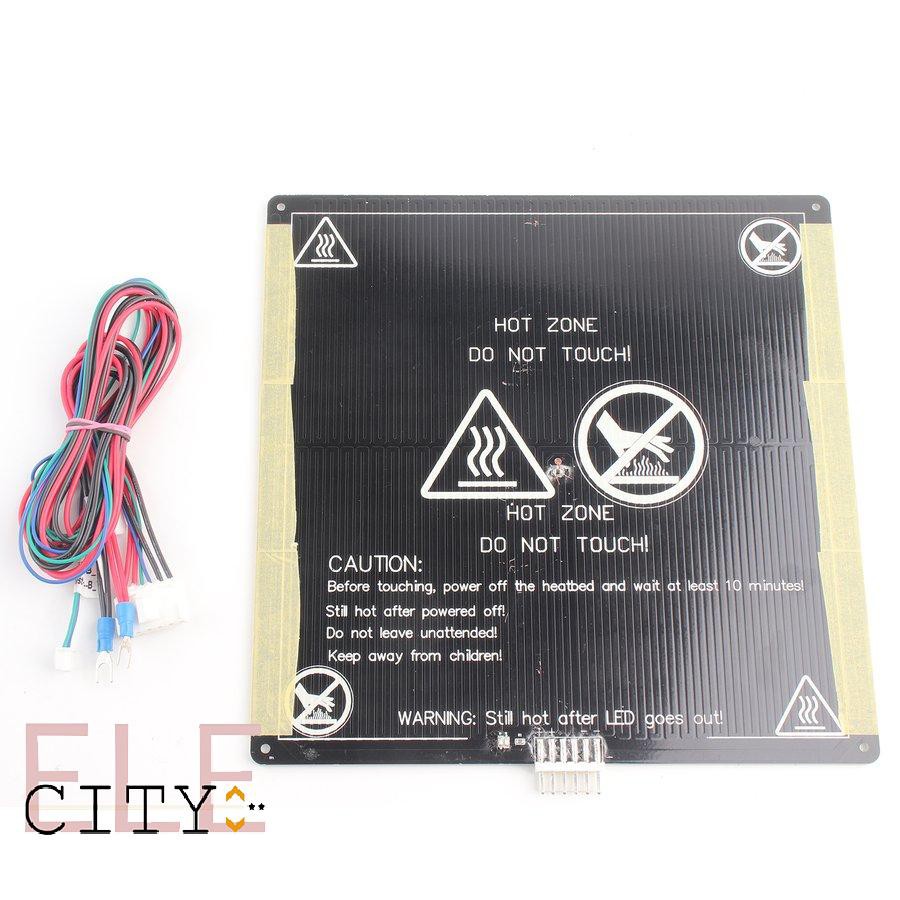

107ele MK3 12V Heatbed 3D Printers Heat Aluminum Plate 3MM PCB Board Accessories
Features:
1.A central mounting hole on the front side to allow for three point mounting.
2.This is much easier for bed leveling in comparison to 4 point mounting.
3.First level the side with two holes and fix in place, then level the side with one hole.

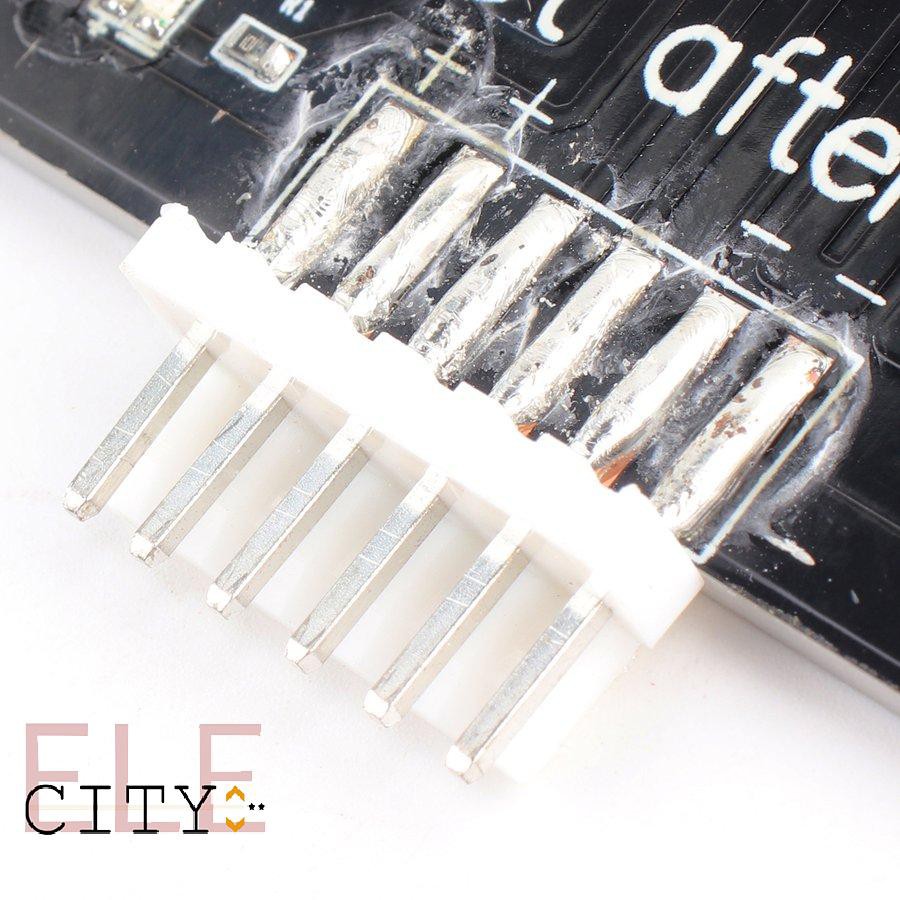

4.Large solder pads for multiple wires (ribbon cable) or a SMD pinhead connector can be mounted.
5.Print directly on the heatbed, no need for glass plate.


Description:
It's a much lighter solution than PCB heatbed + glass, which makes it better for faster prints.
Due to the aluminum substrate material is expensive, the cost of production is often ordinary glass fiber board is expensive, so the MK3 price is more expensive.
Please note the Aluminum Heatbed can have some marks or minor scratches, but it will only be of cosmetic character and will not affect the use adversely.


Specifications:
Model: MK3
Material: Aluminum
Color: black & white
Size: 220*220*3mm
Hole spacing: 214mm
Voltage: 12V
Power: 120W
Resistance: 1.2Ω


Package included:
1 x Heatbed


Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
