Bộ 2 Thiết Bị Ổn Nhiệt Cho Máy In 3d

Giới thiệu Bộ 2 Thiết Bị Ổn Nhiệt Cho Máy In 3d

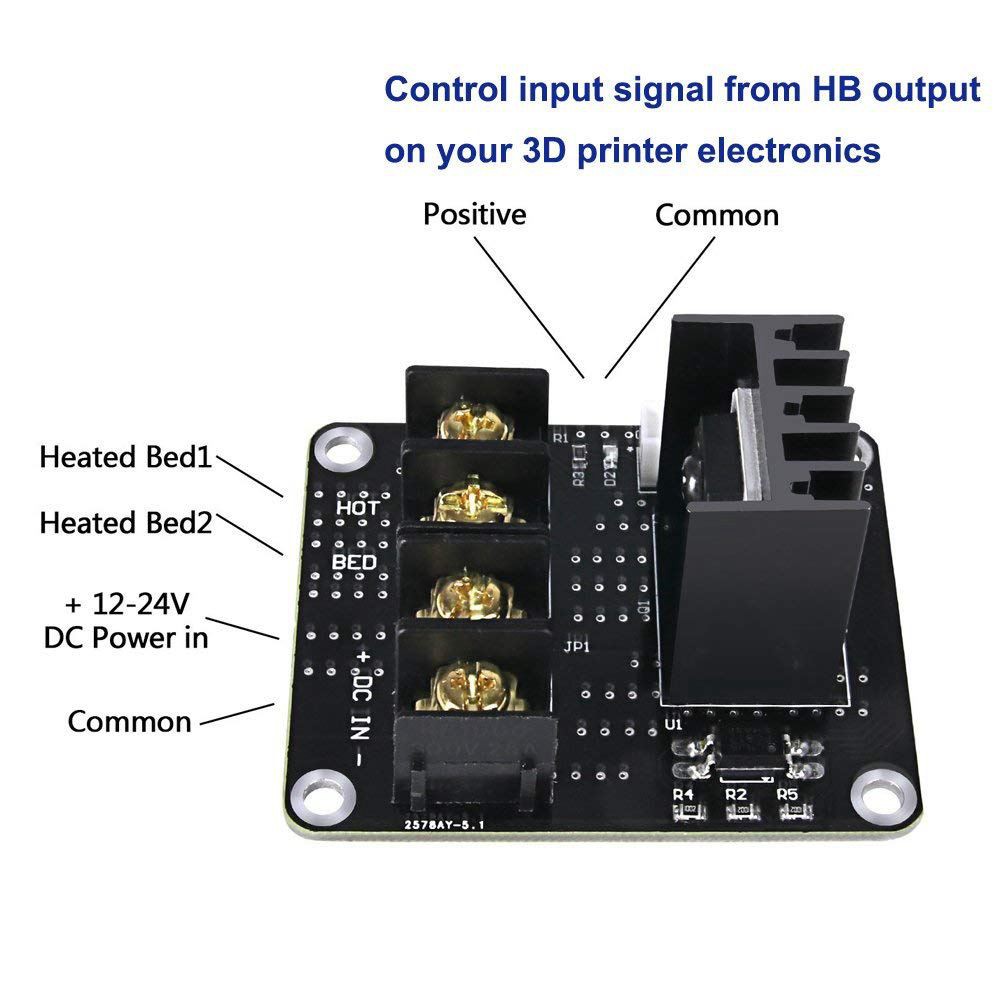

2 Set Heated Bed Mosfet ule for 3D printer(can work on Anet A8).
Helpful for thermal bed to soe the problem of overload current and current load, it can well protect the connectors on the controller board before burning.
With the heat sink power ule to your controller board, it can increase the maximum current up to 25A.
Under the condition of normal cooling, it works stably under I (Max) = 25A, the current must NOT exceed 25A during the working process.

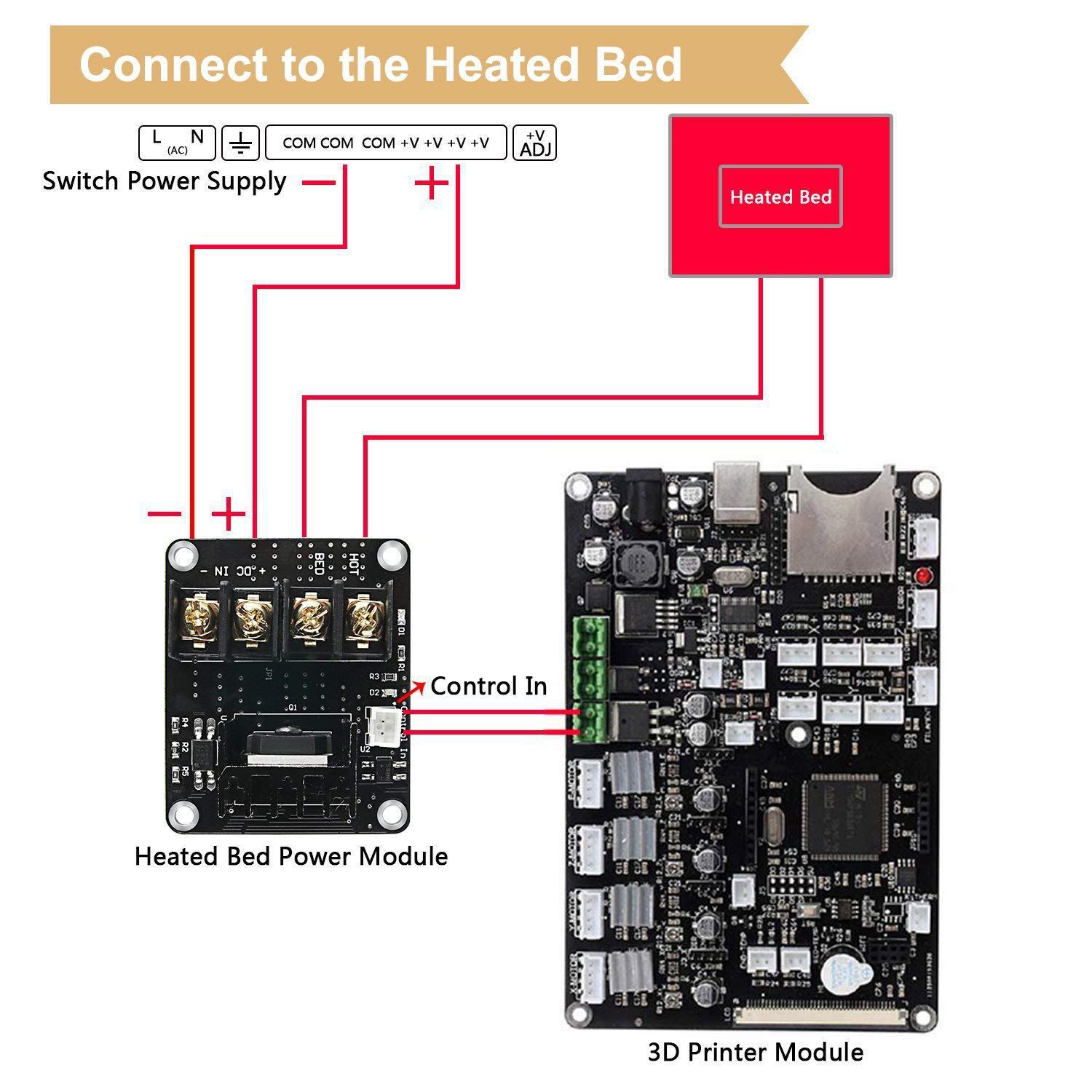

It can be used in both Chitu motherboards and other open 3D printer motherboards.
If you intend to use heated bed for your 3D printer with a 12V power supply, then this ule is recommended, else it may cause excessive current during the times, it can well protect the connectors on the controller board from burning.
If you need anything bigger or equal to 15A, this ule is a must part!
For example, if the total power consumption is 240W and you have 12V power supply, then it means at least 20A is needed (20 x 12 = 240W).
As ChiTu controller board is only capable of 15A, this setting won't work. So you need this extra power ule to make it work!
Color: Black
Max Current: 25A (Enhance heat dissipation)
Size: 6 x 5 x 3.1cm / 2.36 x 1.97 x 1.22 inch
Mounting holes: 3.2mm diameter, for M3 screws
This ule is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this).
Material: metal + plastic
Package Included:
2 Sets x Heated Bed Mosfet
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
