1 Ổ Cắm Hình Lỗ Cắm 2 / 3 / 4 / 5 / 6 / 7 / 8 Pin 16mm Gx16-4

Giới thiệu 1 Ổ Cắm Hình Lỗ Cắm 2 / 3 / 4 / 5 / 6 / 7 / 8 Pin 16mm Gx16-4

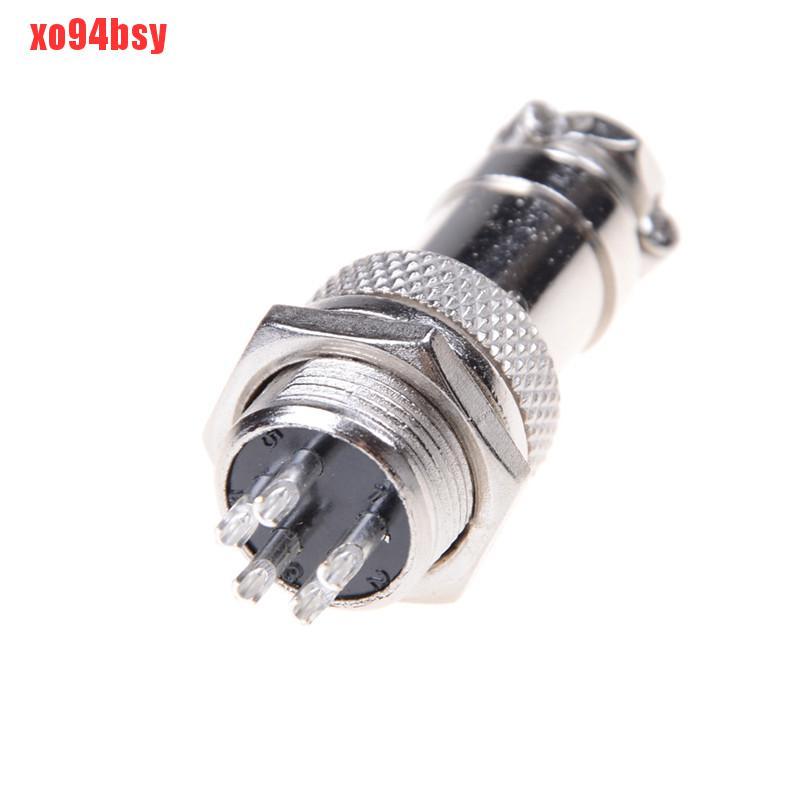

1x Aviation Plug 2/3/4/5/6/7/8 Pin 16mm GX16-4 Metal Male Female Panel ConnectorFeatures:
Professional HS4-1 M16 air plug socket.
Made of soild material, more durable.
One set which includes one male and one female connector.
Specification:
Voltage: 400V(2/3/ Pins) / 250V(5/6/7/8 Pins)
Current: 5A
Environment Temperature: -50 ~ +70℃
Relative Humidity: The temperature is + 40℃ could reach 98%.
Insulation Resistance: Normal conditions no less than 1000 m Ω, not less than 20 m Ω after the constant temperature test.
Testing Voltage: (50 Hz, RMS) Normal conditions 1500V, After constant temperature test 1200V.
Atmospheric Pressure: 4、4kpa.
Vibration: frequency is 10 ~ 100 Hz, accelerated speed is 100 m/s2.
Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2.
Centrifugal: Acceleration is 250 m/s2.
Type: 2/3/4/5/6/7/8 pin
Material: Metal
Color: silver
Size: approx 45mm x 19mm / 1.8" x 0.8"
Package Includes:
1 x 2/3/5/6/7/8 pin M16 Aviation Plug
