1 Cuộn Dây Biến Áp Pzct-02 Cho Thiết Bị Năng Lượng 100a

Giới thiệu 1 Cuộn Dây Biến Áp Pzct-02 Cho Thiết Bị Năng Lượng 100a

----------------------- ♥♥ -Produkasyong Impormasyon - ♥♥ ------------------ -------
✔Magpadala upang magpadala ng ✔High kalidad ✔Binungunang presyo ✔Brand bagong 100%
✔ Pinakamahusay na Presyo ng Dami ng Shopee ✔upplier Info ✔invoice
Mga sorpresa para sa iyo:
❀ Sundin ang mga shop / "Tulad ng" Item: Priority Shipping & Free Gift
☞PS: Kung nais mo ng isang libreng regalo, mangyaring ipadala sa akin ang screen na sinusundan mo ang aking shop at mag-iwan ng mensahe sa iyong order. # Xiyijiaproduct

Features:

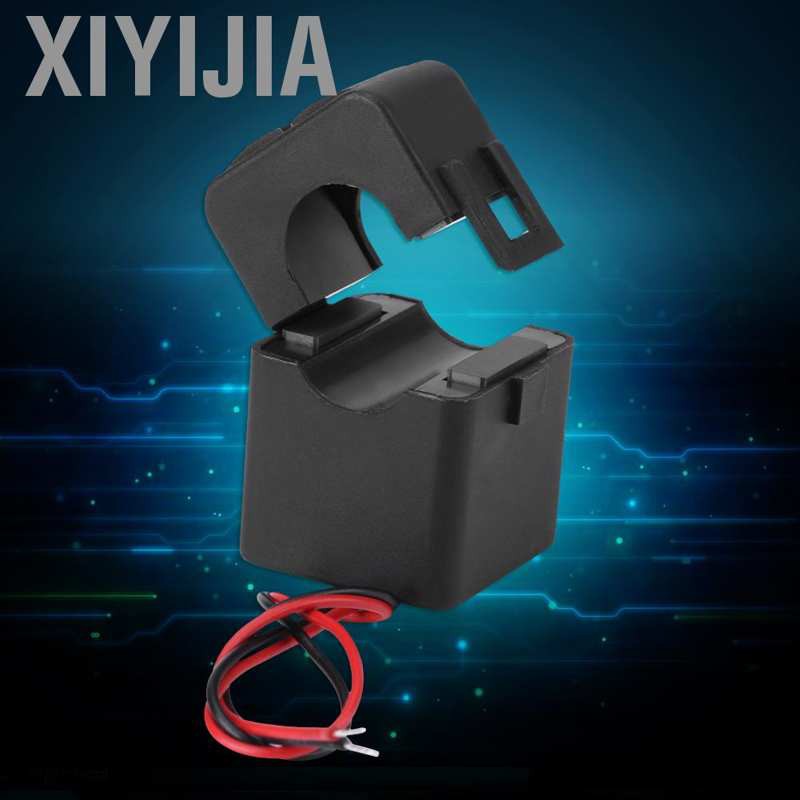

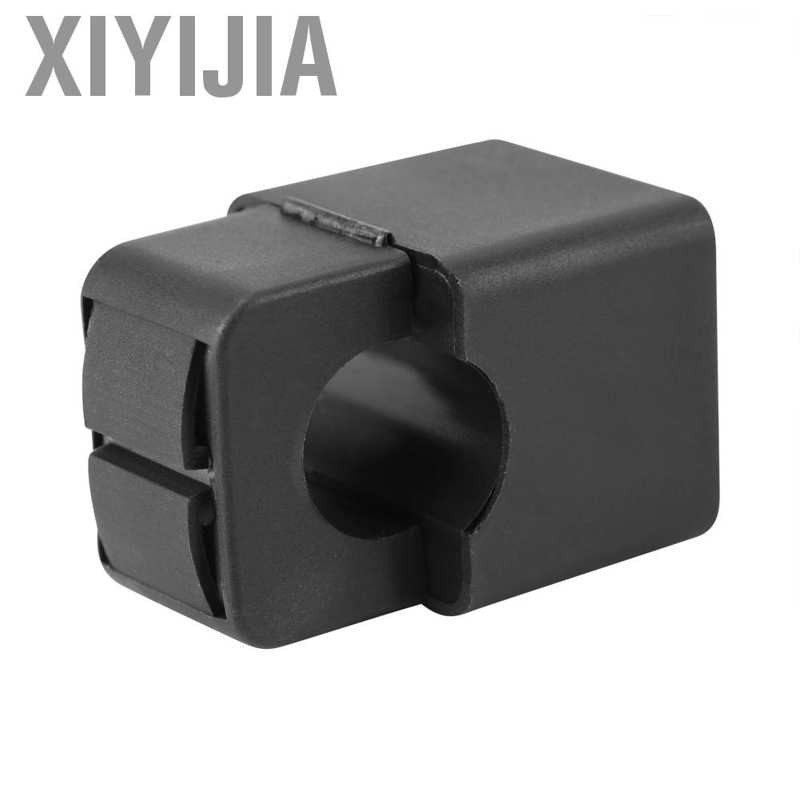

This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA).
The diameter of inner hole is 16mm, the accuracy is ≤0.5 grade,
Using snap joint structure, it can be fixed to the cable directly through nylon ties.
Built-in input coil; small and light, easy to install.
Fully enclosed, good mechanical properties and environmental
resistance, strong voltage isolation capability, safety and reliability.

Specifications:
Brand: PEACEFAIR
Model: PZCT-02
Environment temperature: -40℃~+85℃
Relative humidity: ≤ 90%(40℃)
Working frequency: 50Hz~60Hz
Insulation endurance grade: B grade (130℃)
Insulation resistance: >1000MΩ normally
Dielectric strength: can afford power frequency 1000V/1minute
Flame resistance: Conform to UL94-Vo grade
Internal resistance: 10Ω
Measuring range: 0-100A
Weight:59g
Application:
1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied.
2. When you fix the energy meter, you don't need to cut off the power if you use this product.

Package Included:
1 x  Current Transformer

Note:
1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state.
2. The secondary circuit is not allowed open circuit, so please do not install fuse.

Hình ảnh sản phẩm
