Description:
1 set quartz clock movement clock replacement mechanism kit, the broken clock can work again after replacing the movement, no need to buy a new one.

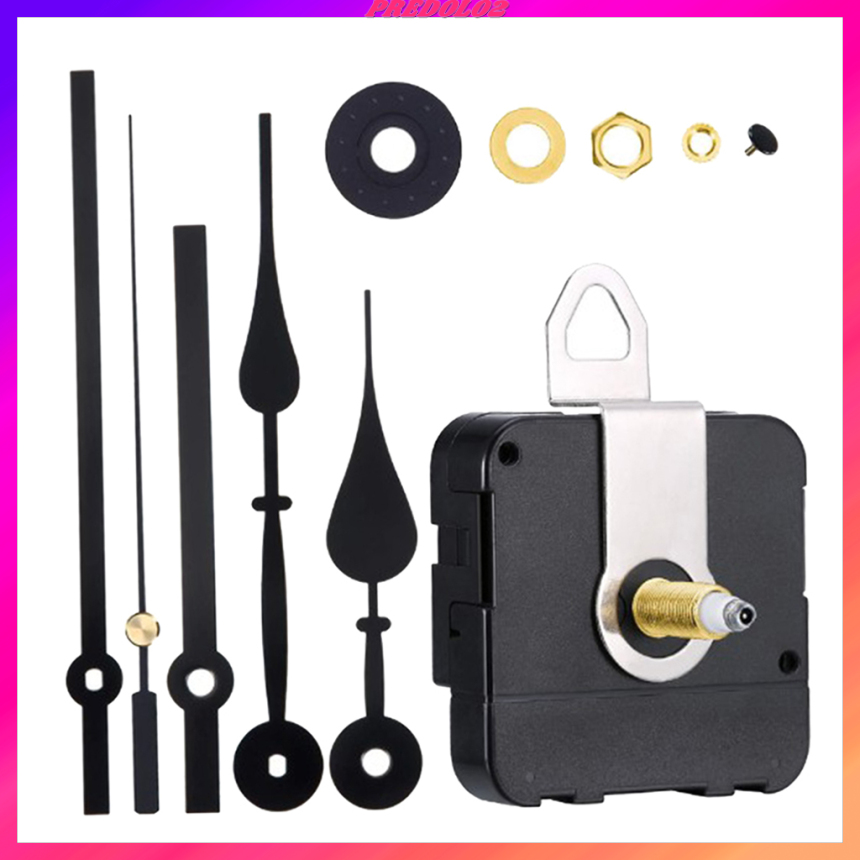

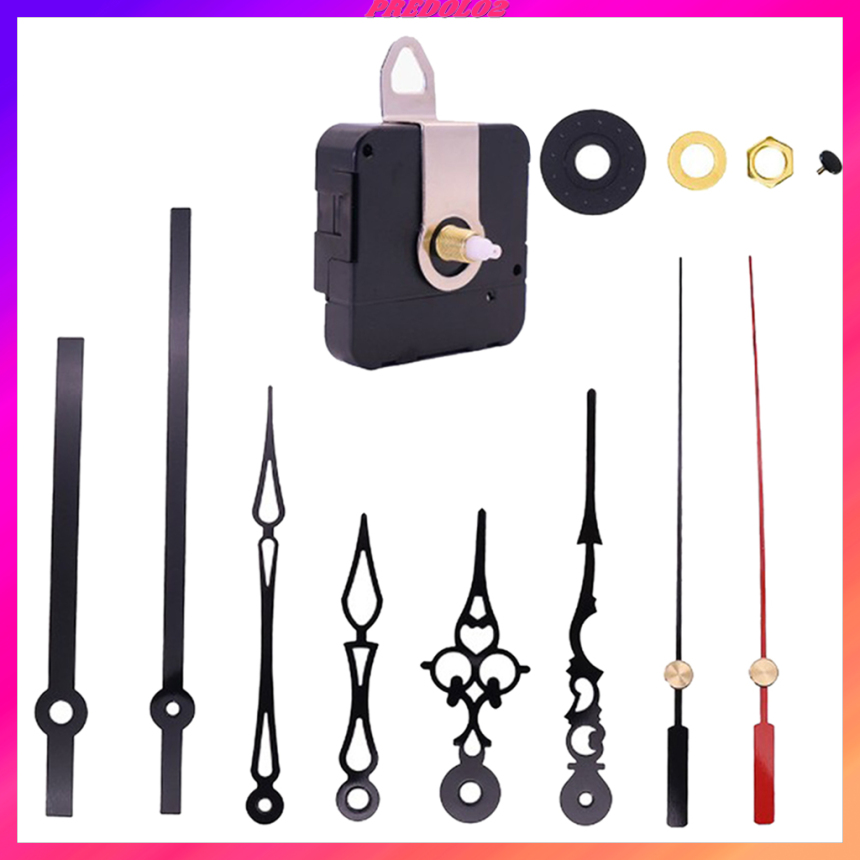

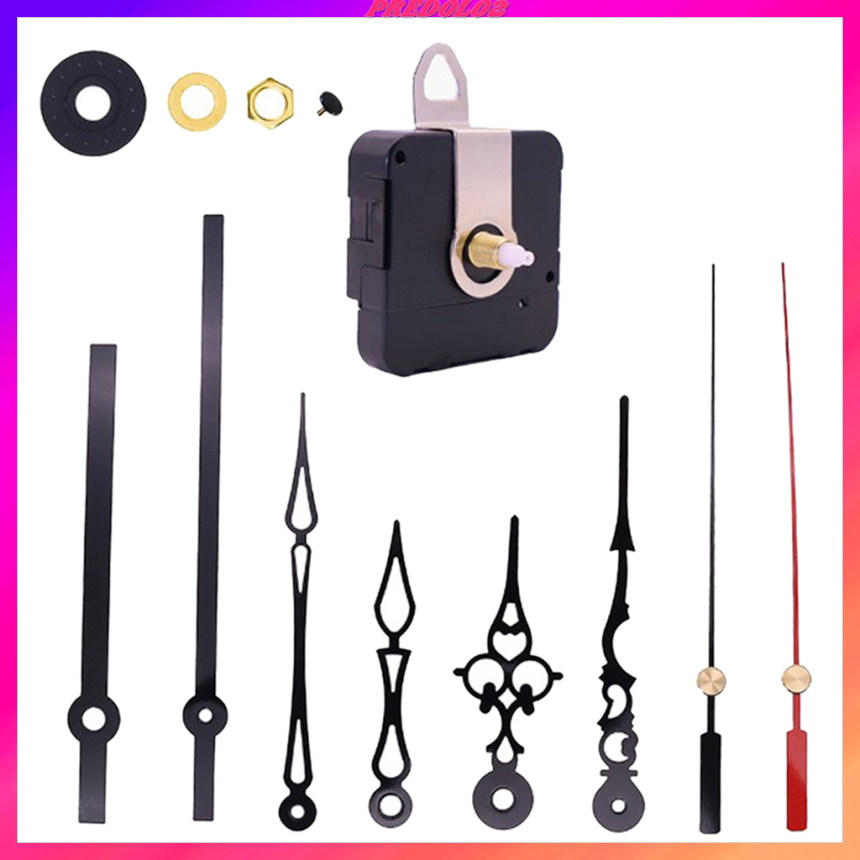

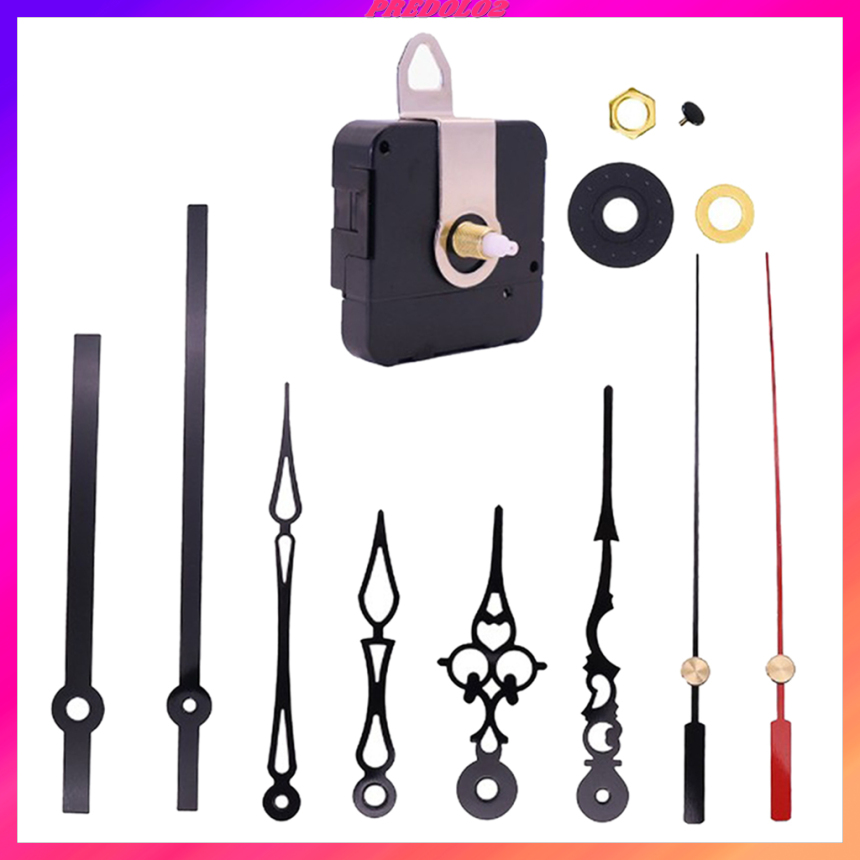

Type 1 kit contains a clock movement with one hook, 2pcs hour hand, 2pcs minute hand and 2pcs second hand (type 2 includes 4 pairs different style of hands), the accessories are also included.

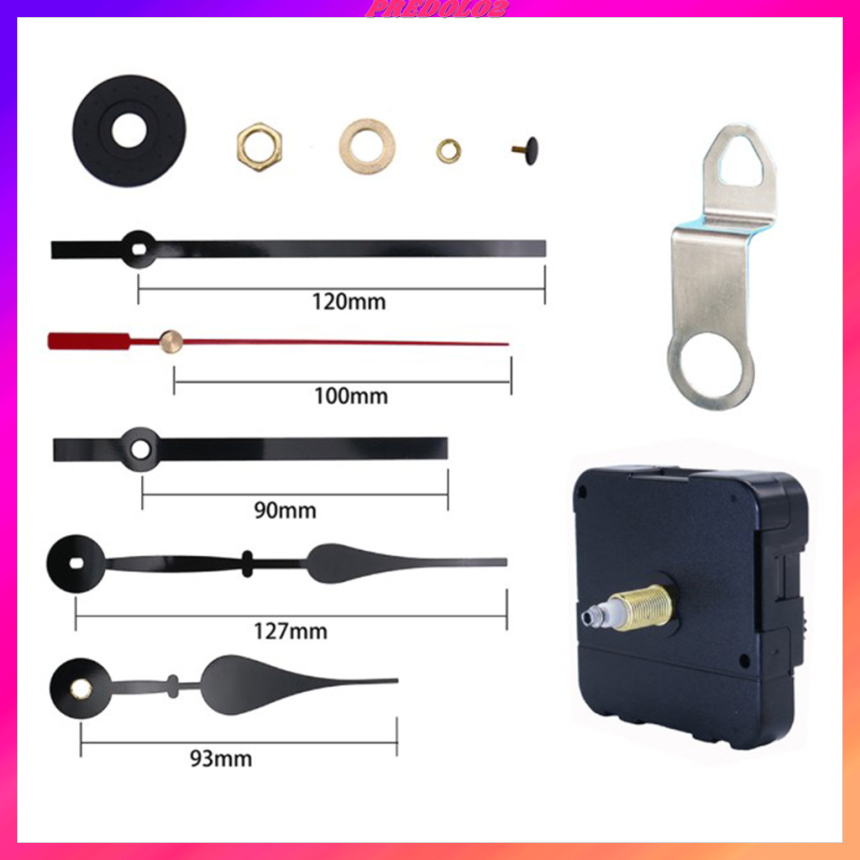

The length of hour hand is about 90mm/93mm, the minute hand is about 120mm/127mm, the second hand is about 100mm/3.94 inches (from the hole center to the terminal) long.
This kit fit clock dials from 0.2 in - 0.35 in thick, ornate sets for different options, perfect for your clock creations.
Suitable for DIY quartz wall clock, wood wall clock, metal wall clock, craft clock, frameless wall clock, replace broken clock, etc.
Specification:
Material: Plastic, Metal
Colors: Black, red
Threaded Shaft Length: 11.7mm
Overall Shaft Length: 20mm
Quartz Movement Size: 56x56x16mm/2.2x2.2x0.63in
Battery: One 1.5V AA battery (not included)
Installation Steps
1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dail fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 postion.
7. Place minute hand over shaft at 12:00 postion.
8. Gently screw minute nut in place.
Package Includes:
1 Set Quartz Clock Movement Kit
Note:
1. Be careful not to bend the hands with too much pressure.
2. Do not tighten the hex nut too tight.
3. Press hard to get all clock hands in place.
4. Check if all hands are aligned.
